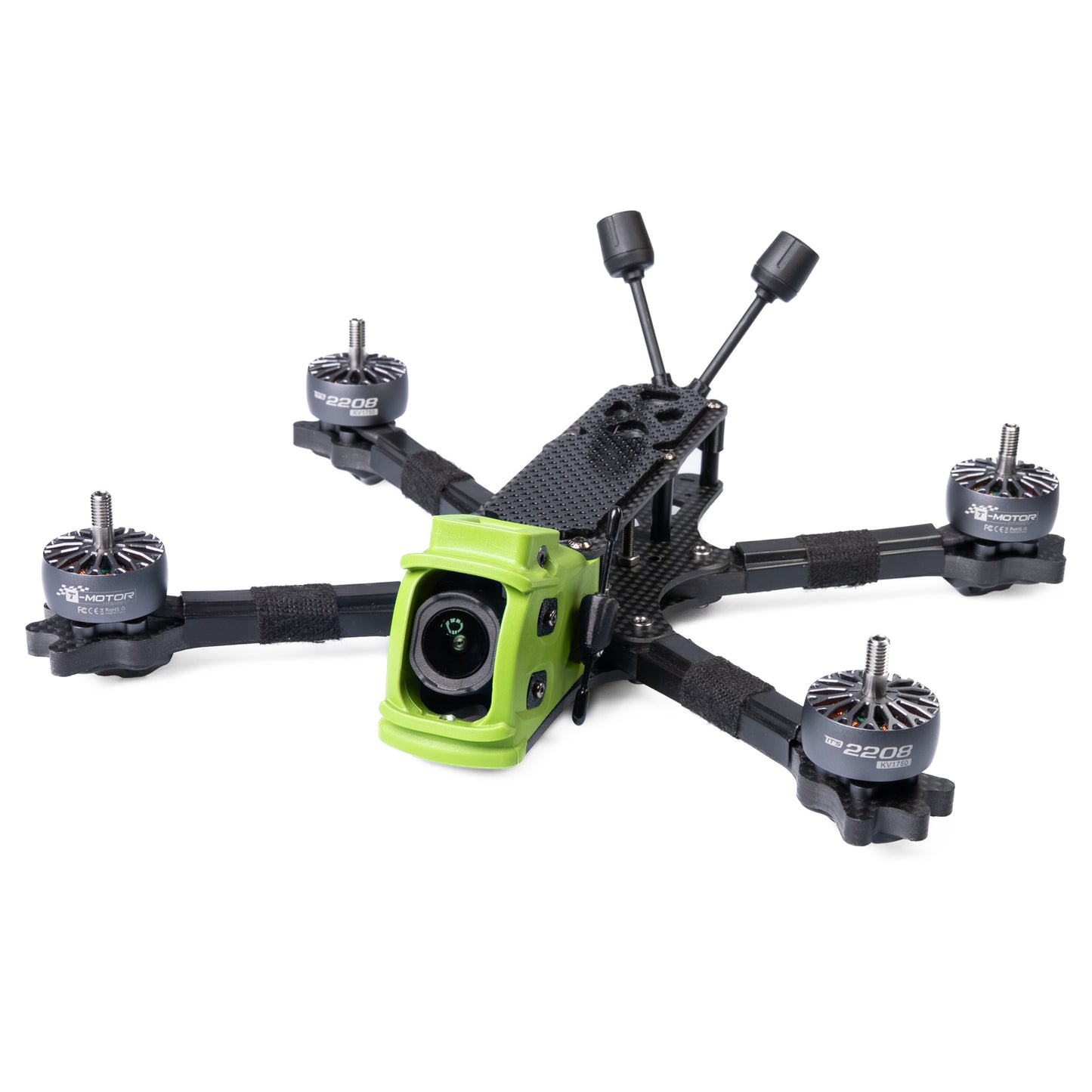

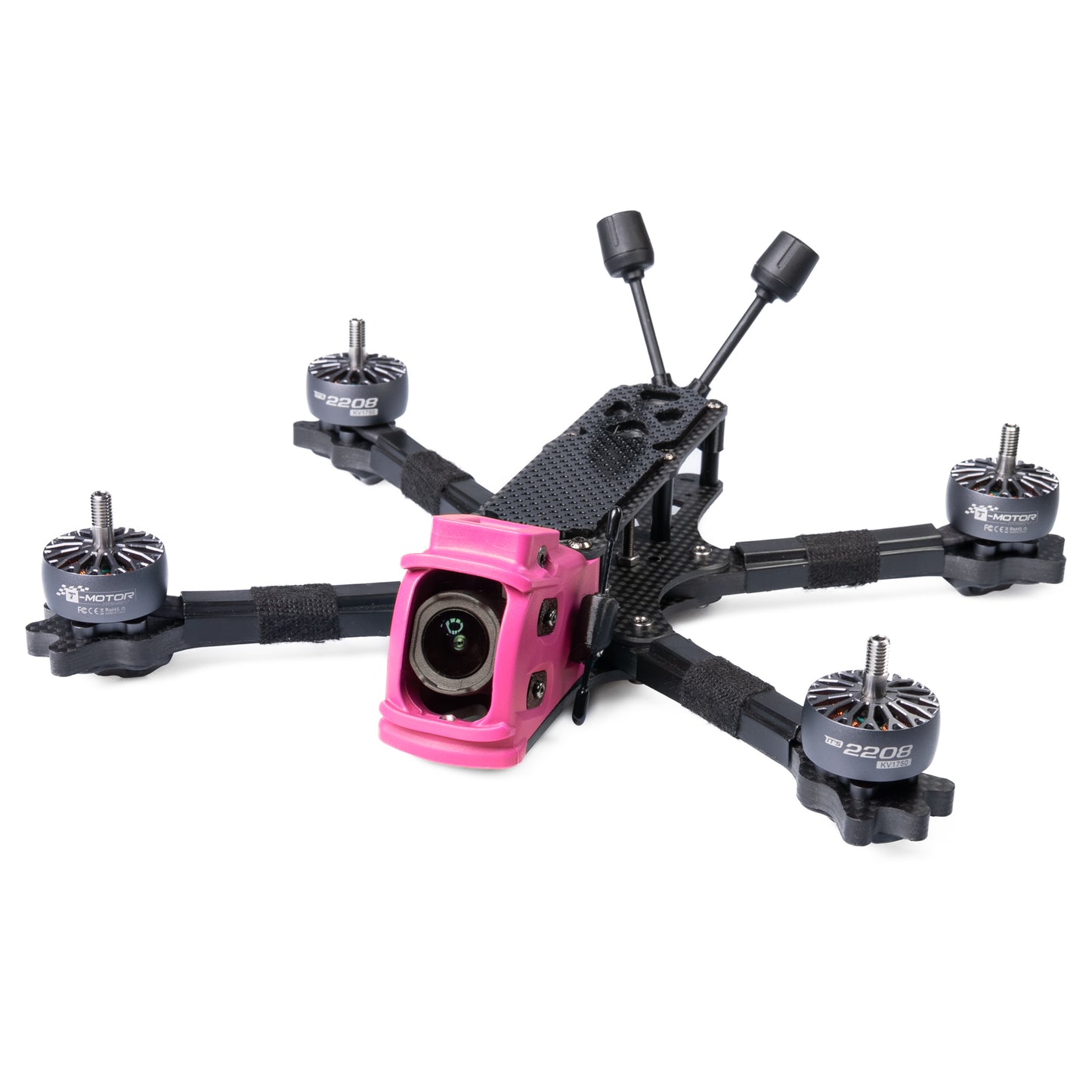

ERA 5″ Frame Kit O4

ERA 5″ Frame Kit O4

Regular price €119,99 EUR
Regular price Sale price €119,99 EUR
Sale Sold out
Taxes included.
Camera Cage Style

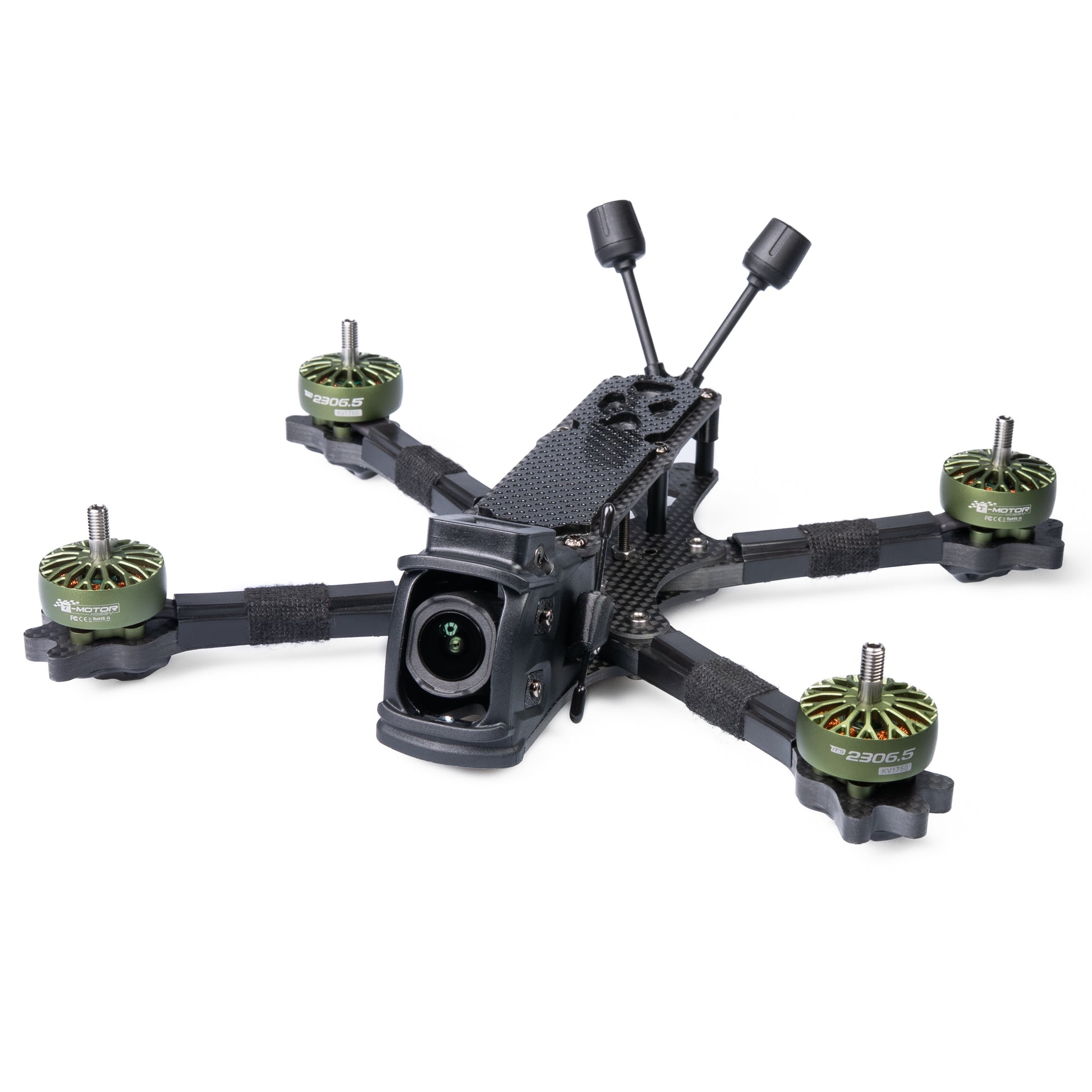

The ERA 5″ Frame Kit O4 is a new variant designed to house the DJI O4 Air Unit Pro, taking your flying experience to the next level. This frame retains the best features of the original ERA while introducing key enhancements:

O4 Nylon Camera Cage: Specially designed to accommodate the larger DJI Air Unit O4 camera, crafted from high-quality nylon using advanced additive manufacturing techniques.

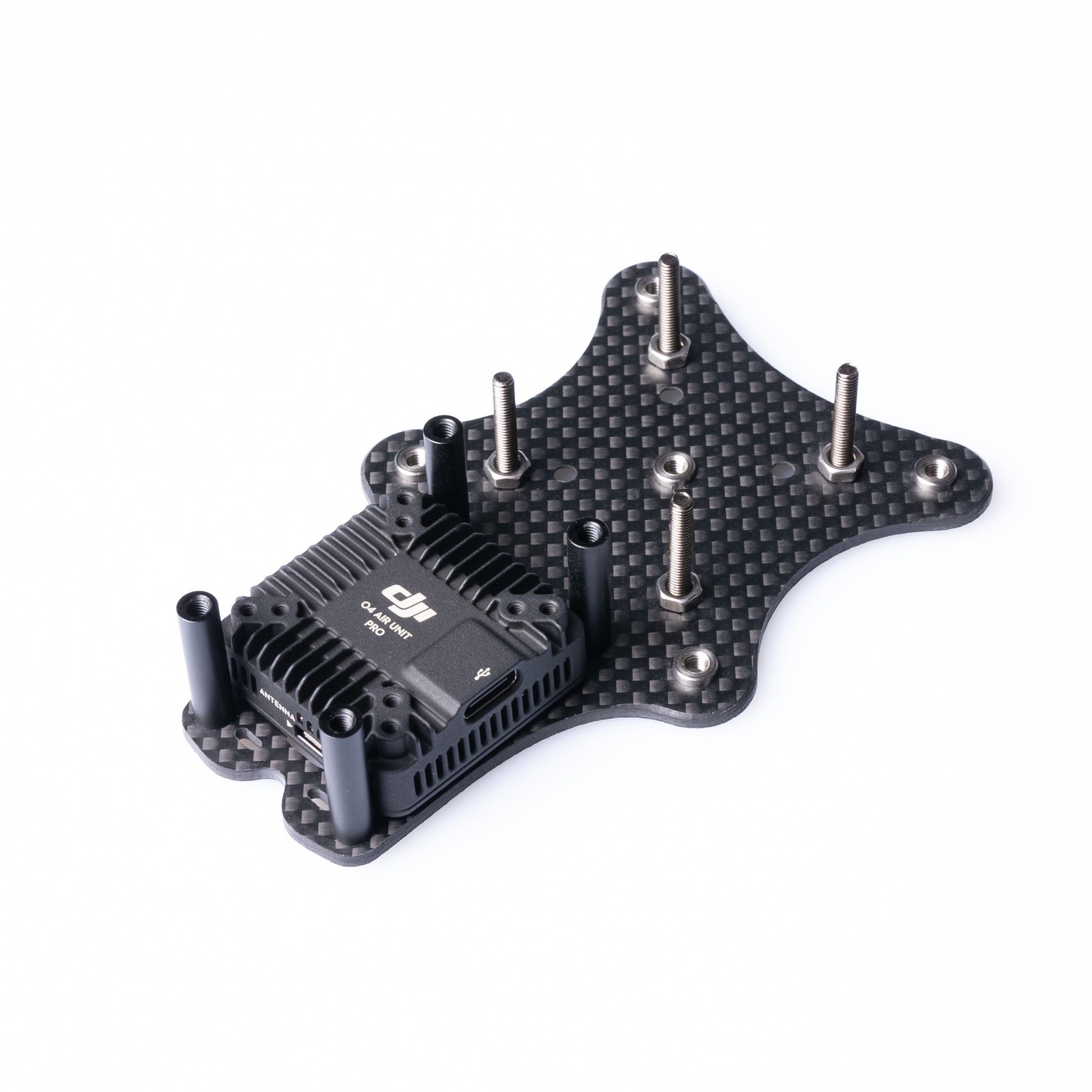

O4 Bottom Plate Front: A larger bottom plate crafted from carbon fiber to ensure a perfect fit for the new O4 Nylon Camera Cage.

Updated 3D Prints: O4 VTX Dual Antenna Holder, New TPU Camera Inserts

If you already own an ERA Frame Kit, you can upgrade to the O4 with this conversion kit.

With the cage's quick swap function, you can install or remove your action camera effortlessly with just one screw. The mount offers a fixed 20-degree angle, customizable with different mounts.

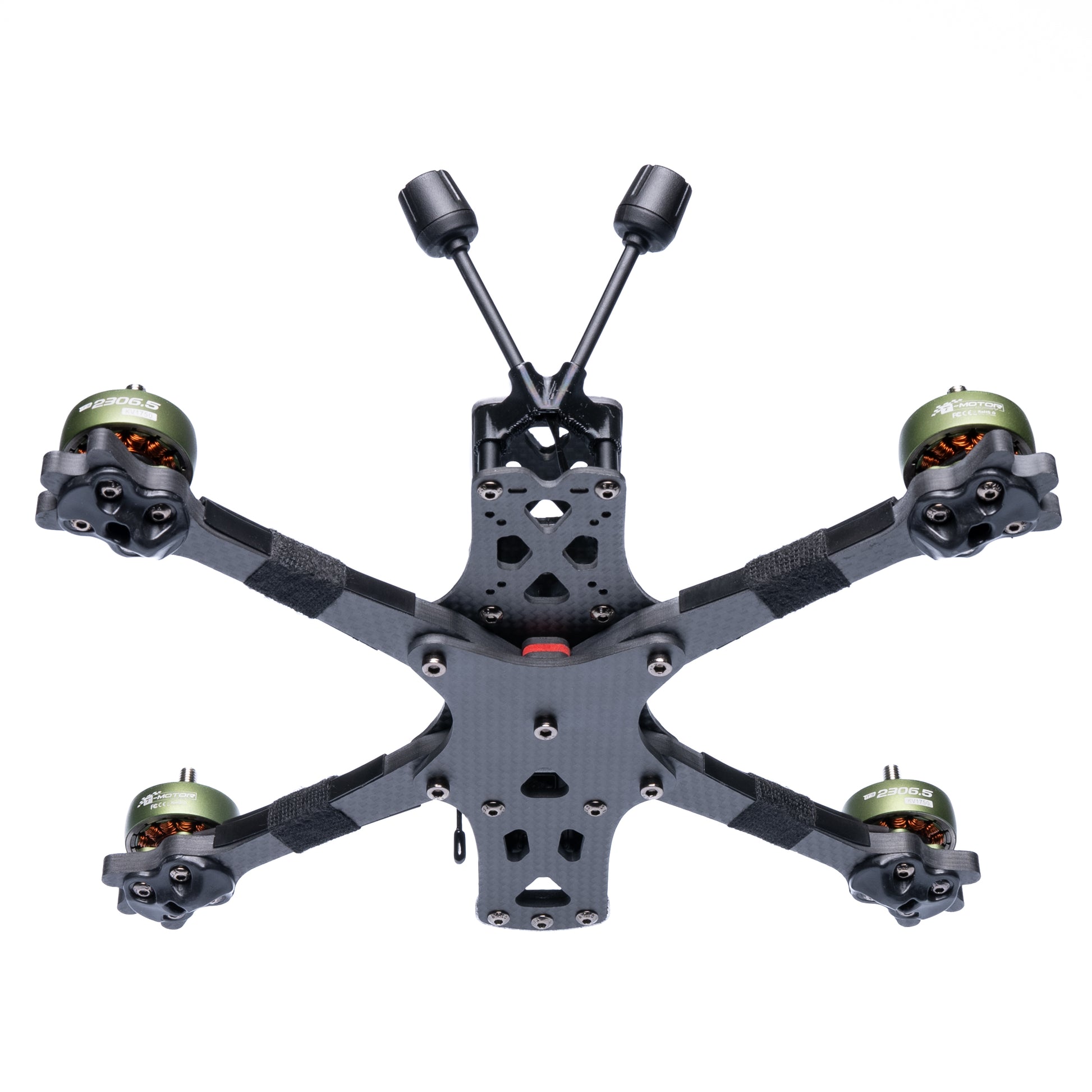

The compressed X frame design provides exceptional stability and responsiveness for pitch and roll, ensuring precise control. Its split deck design reduces weight while maintaining durability.

A frame developed by pilots for pilots.

Important Notes:

This cage is crafted from high-quality nylon through additive manufacturing. While it provides solid protection, it’s not as robust as the current injection-molded cage.

ELRS Antenna Holder, Action Cam Mounts, and Electronics are not included.

For customers outside the EU: Price does not include tax.

Features



Up to 55% stronger carbon fiber than typical FPV frames
Super durable nylon camera cage
Nylon-kevlar battery straps
Super sticky lipo pad
Injection molded wire protector
20 degree standard camera angle
Three point bell protection
One screw arm swap
One screw action camera swap



Specifications



7075 Aluminium standoffs
Compressed X frame geometry
12.9 hardened steel hardware
Fits up to 5.2" propellers
Wheelbase 225mm
Stack mounting 30.5x30.5mm, 20x20mm
Motor mounting 16x16mm
Camera mounting up to 20x20mm
VTX mounting 20x20mm, 25.5x25.5mm



Scope of delivery

Cage

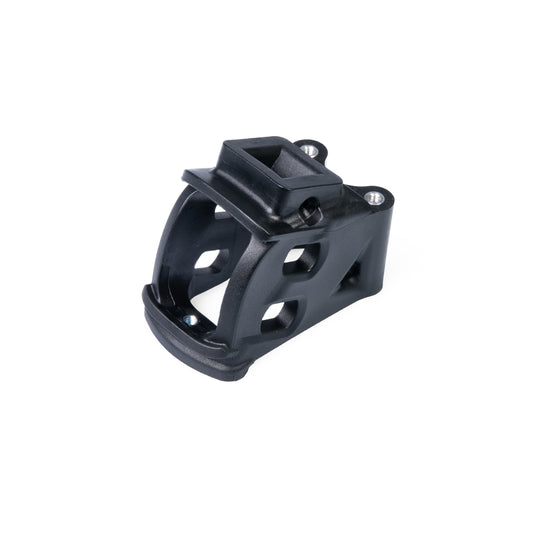

1x O4 Nylon Camera Cage

Injection molded hardware

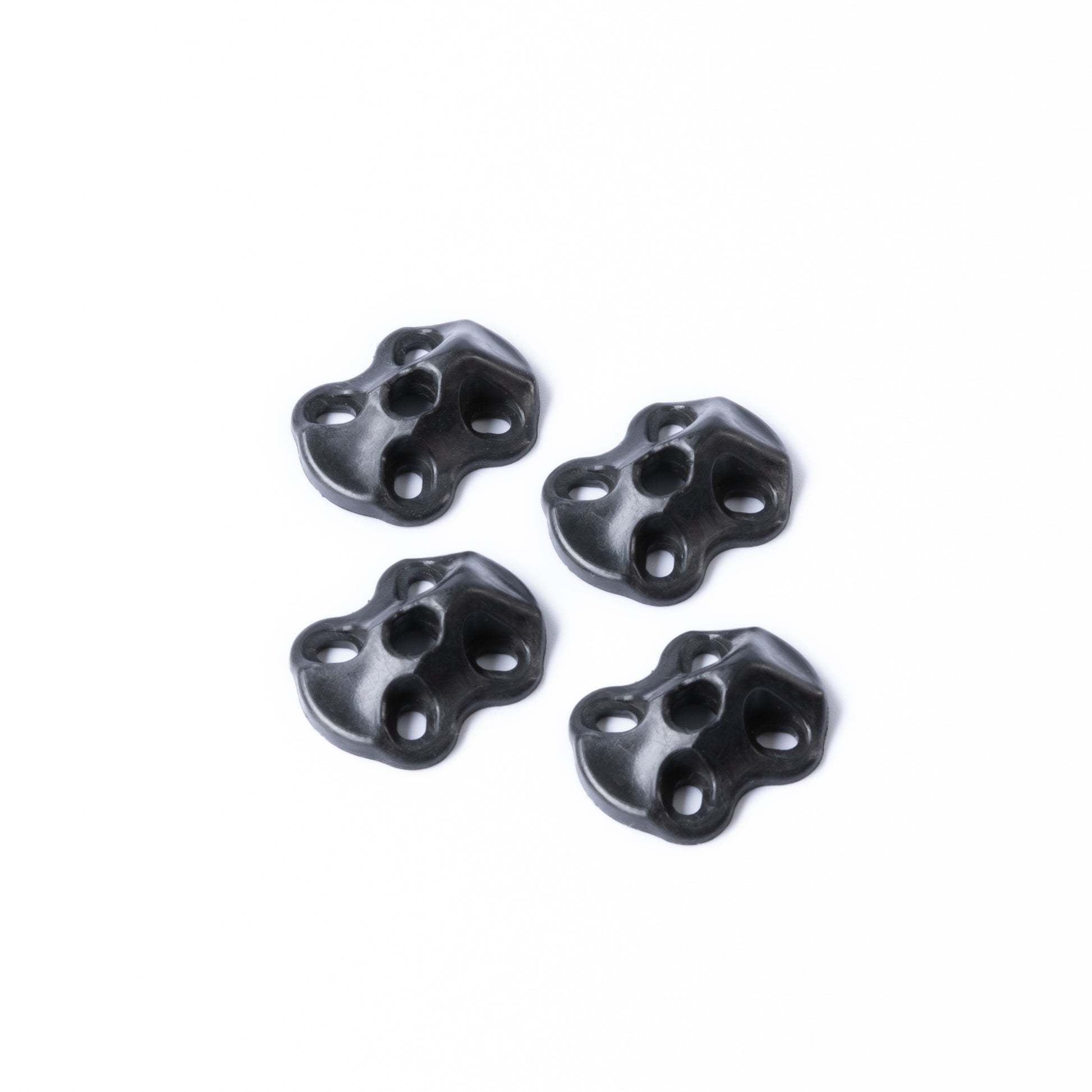

4x Skids

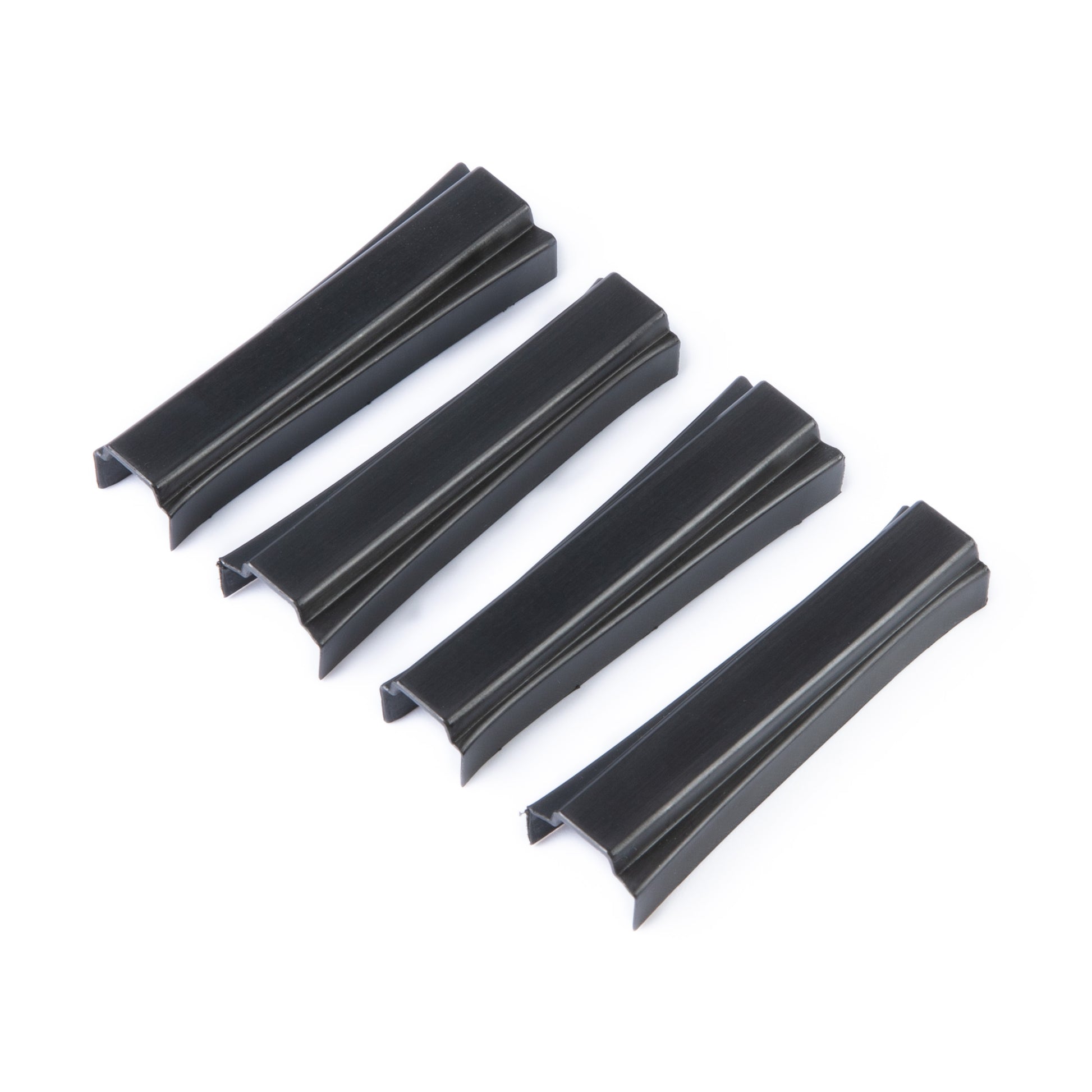

4x Wire Protector

Carbon fiber frame parts

1x O4 Bottom Plate Front CF 2,5mm

1x Bottom Plate Back CF 2mm

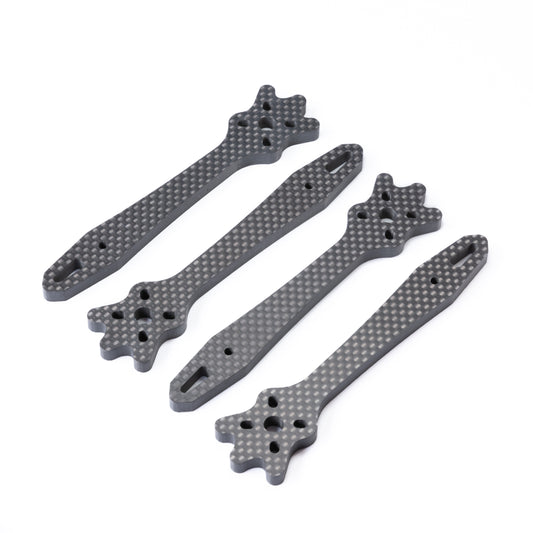

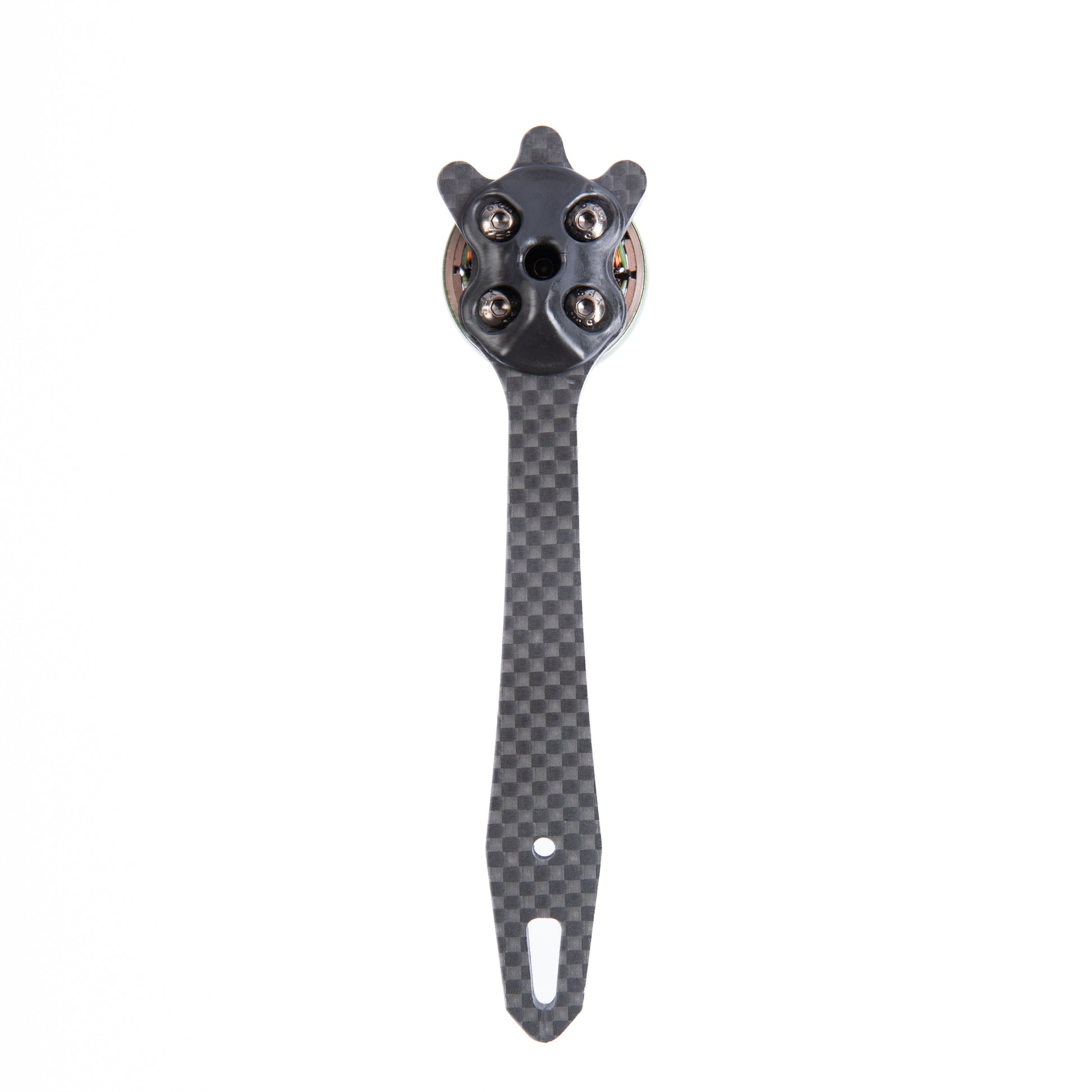

4x Arm CF 6mm

1x Top Plate CF 2mm

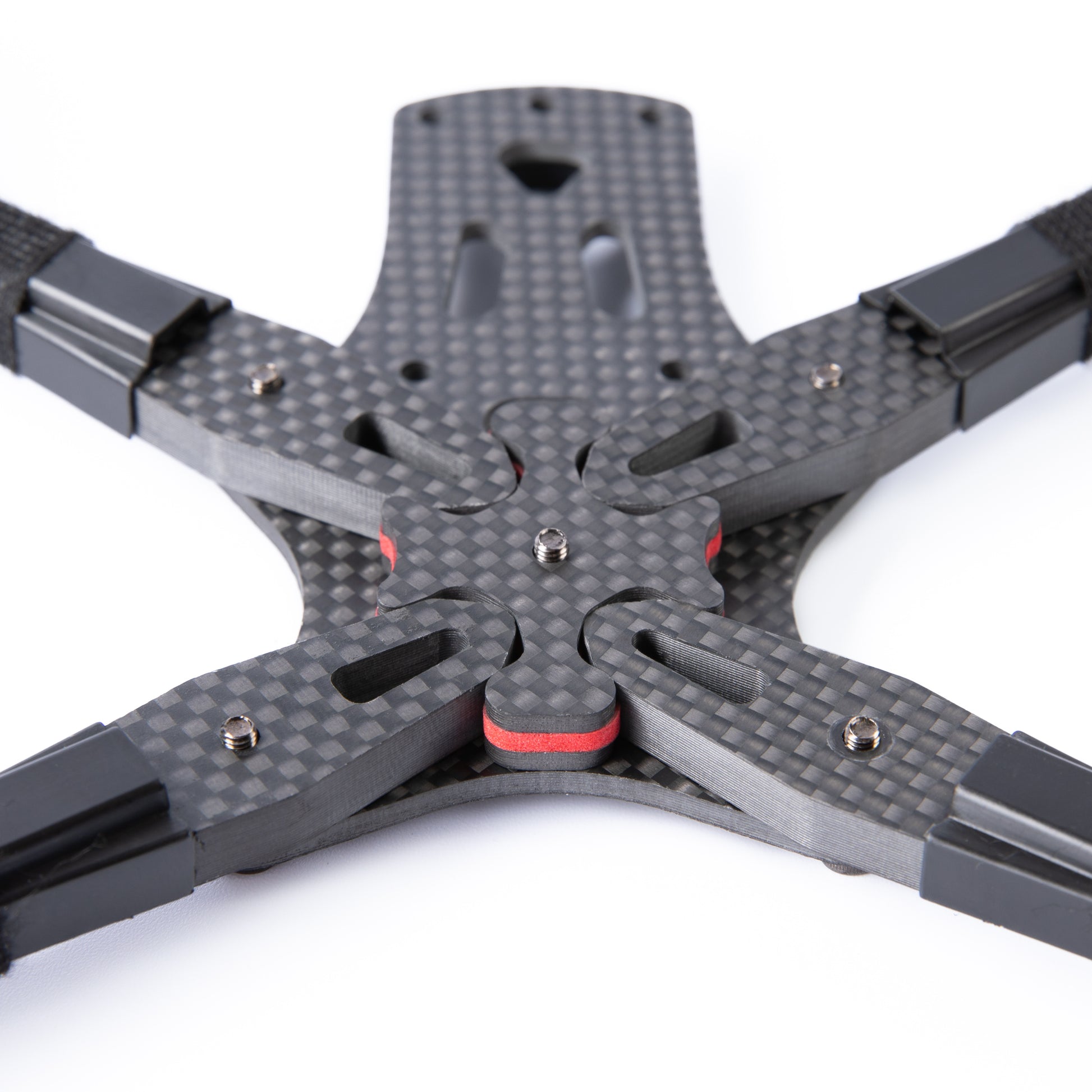

1x Interlock V2

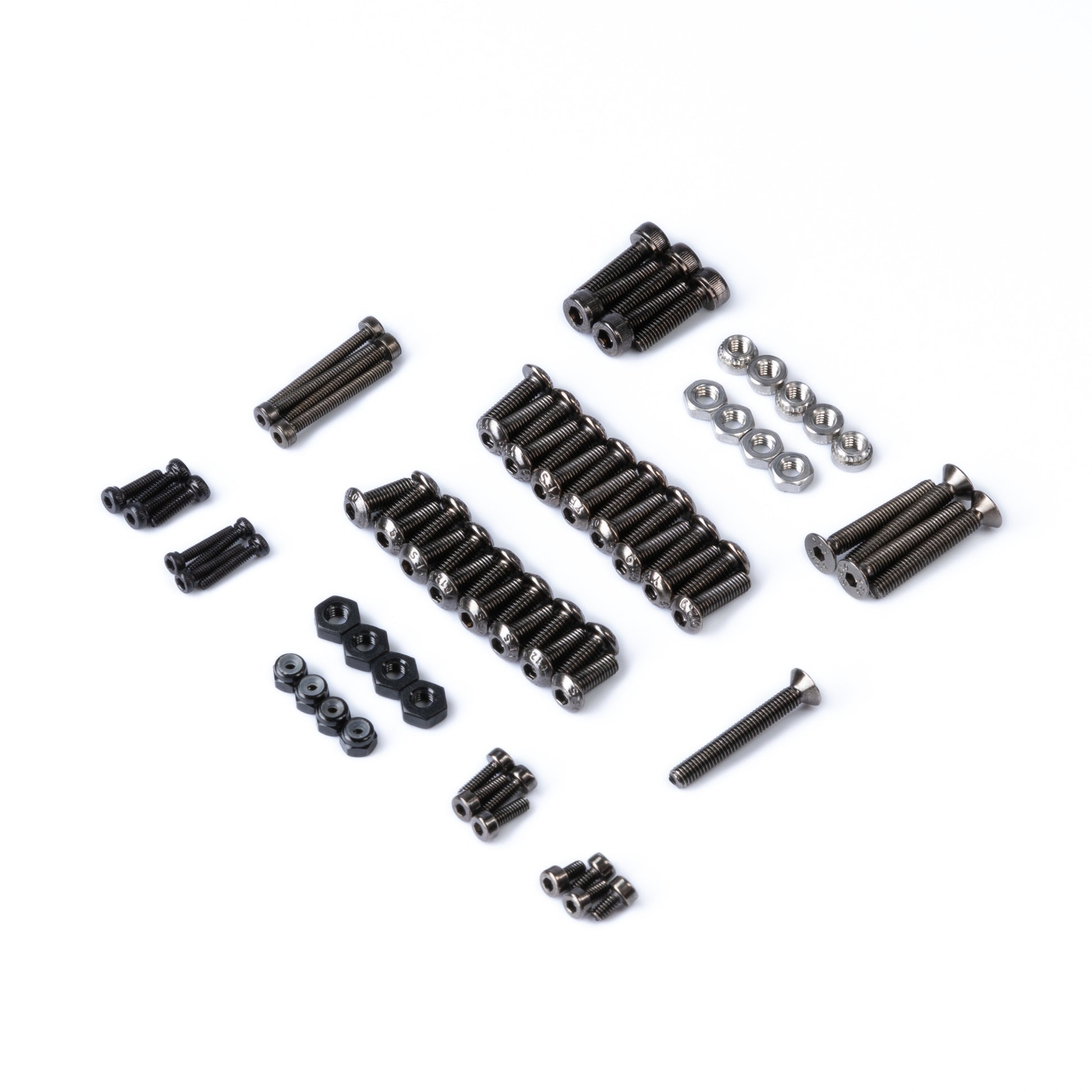

Hardware

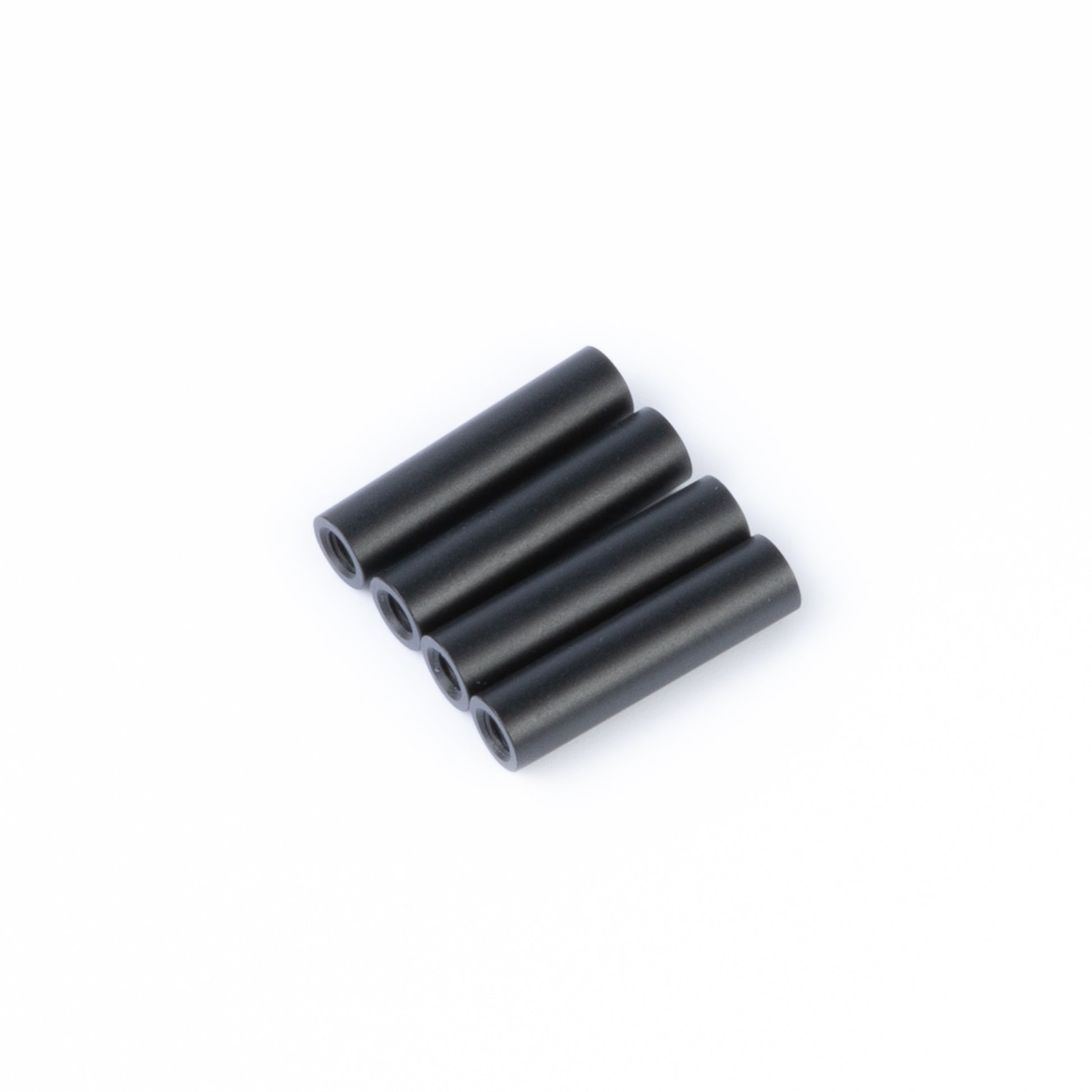

4x 20mm Standoffs 7075

15x 8mm M3 Buttonhead 12.9

16x 10mm M3 Buttonhead 12.9

5x 12mm M3 Caphead 12.9

4x 20mm Countersunk V2A

1x 22mm M3 Countersunk

5x M3 Pressnut

4x 18mm M2 Caphead 12.9

4x 7mm M2 Caphead 12.9

4x 6mm M2 Caphead 12.9

4x 4mm M2 Caphead 12.9

4x Lock nut M2

4x 9mm M1.6 Caphead 12.9

3D Print Hardware

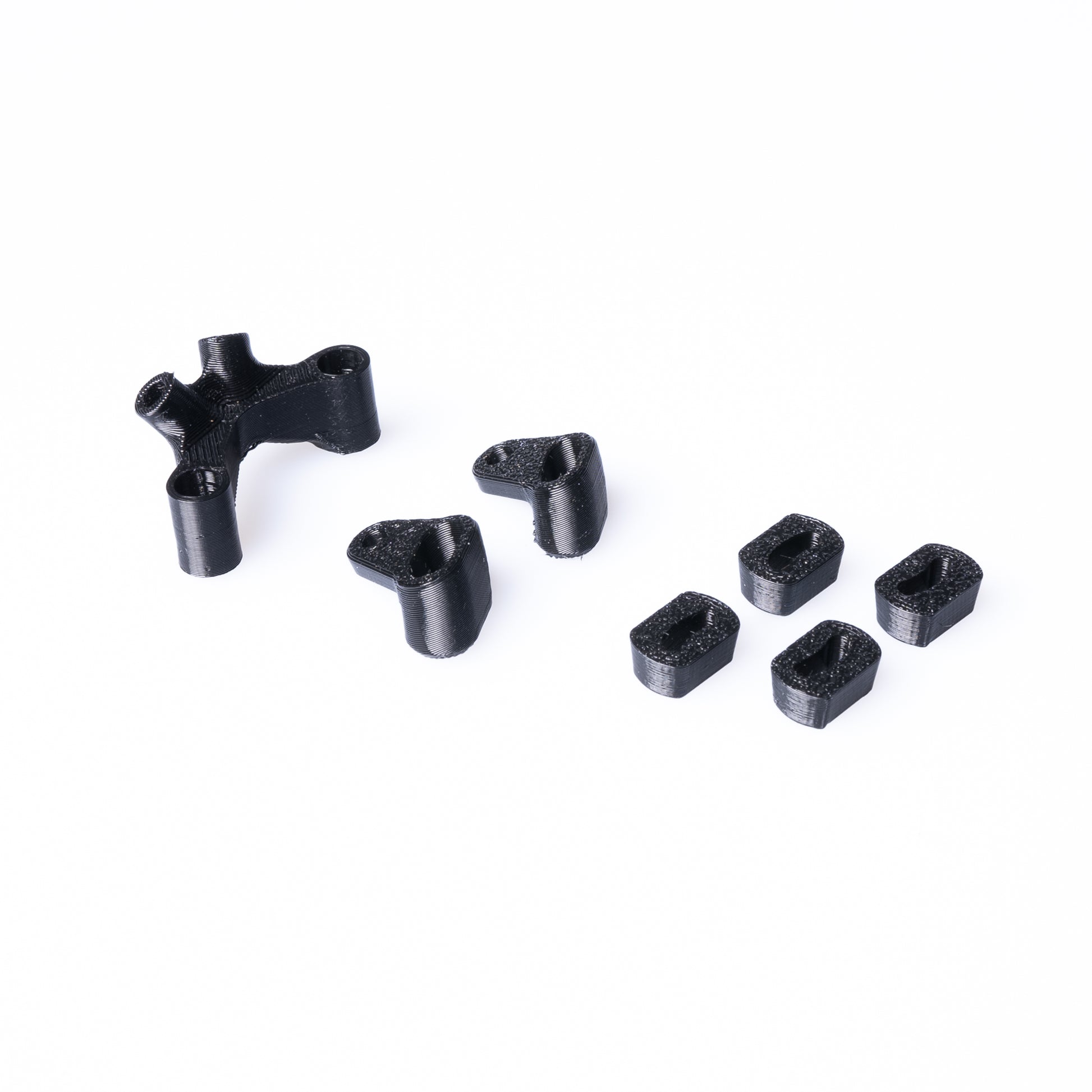

4x TPU Camera Inserts O4

1x AWG14 Lead Holder

1x AWG12 Lead Holder

1x O4 VTX Dual Antenna Holder

Miscellaneous

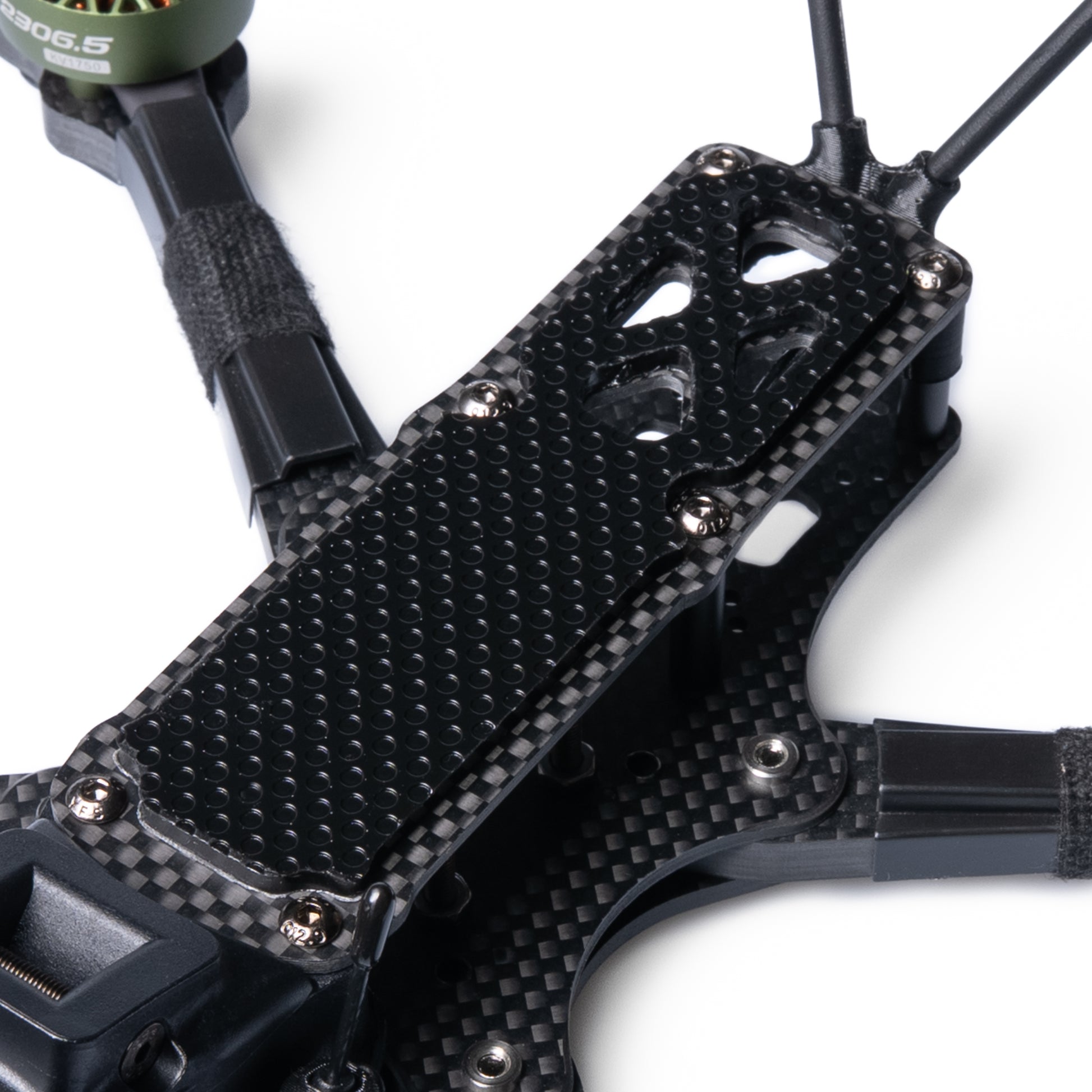

1x Super Sticky Lipo Pad

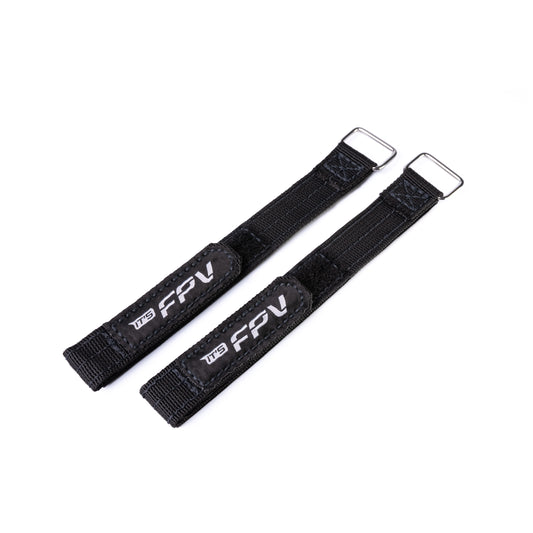

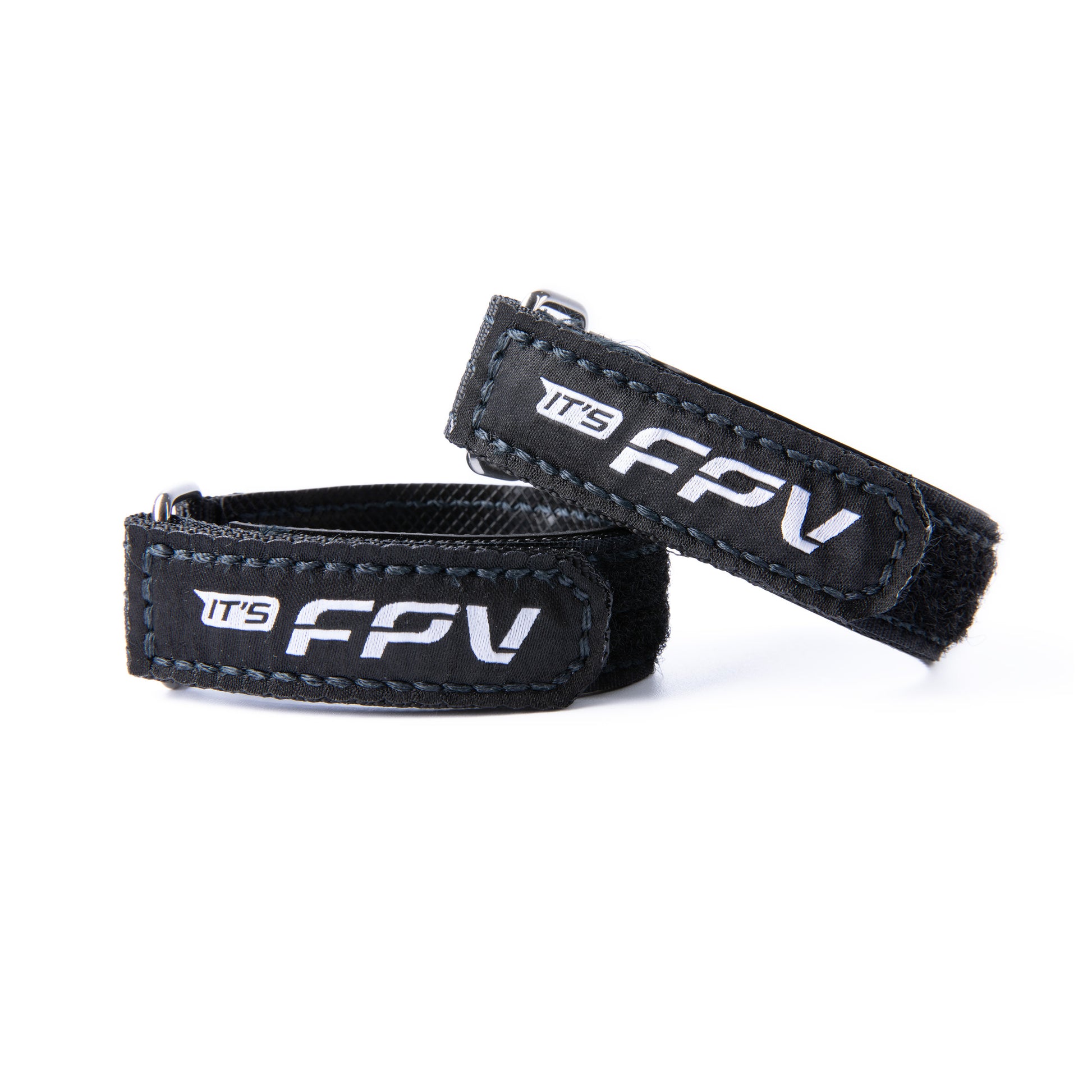

2x Nylon-kevlar Battery Straps (length 250mm)

View full details

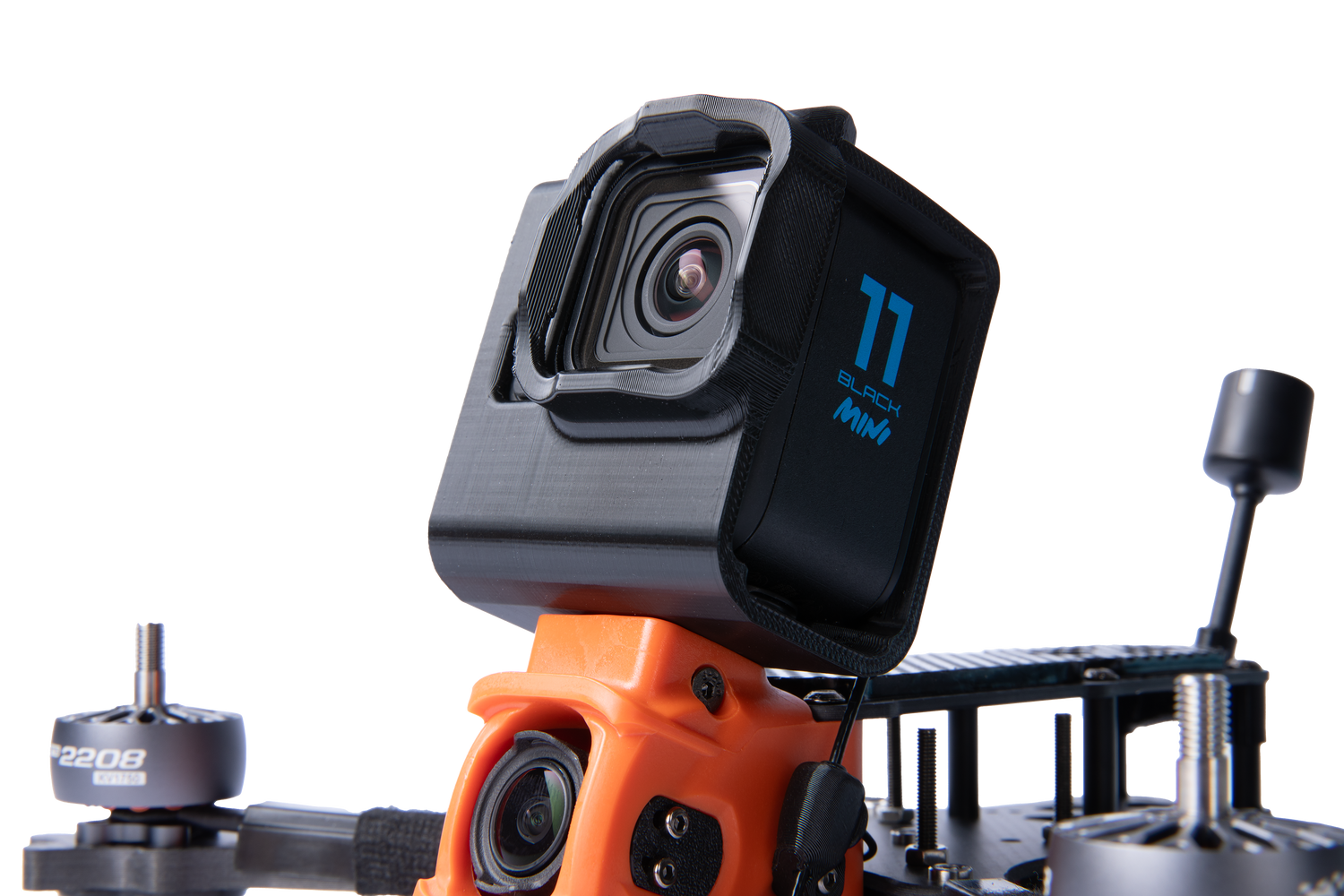

Action Camera Mounts

Available seperately for the nylon camera cage.

Available in 10-30° angles.

  • GoPro 9,10,11,12
  • GoPro 11 Mini
  • DJI Action 2

If you have a 3D printer, you can download the mounts from the 3D Printed Hardware page for free.

3D Printed Hardware

Acessories

Need some extra chooch?

3D printed acessories available seperately for the ERA frame, downloadable for free.

Acessories Page

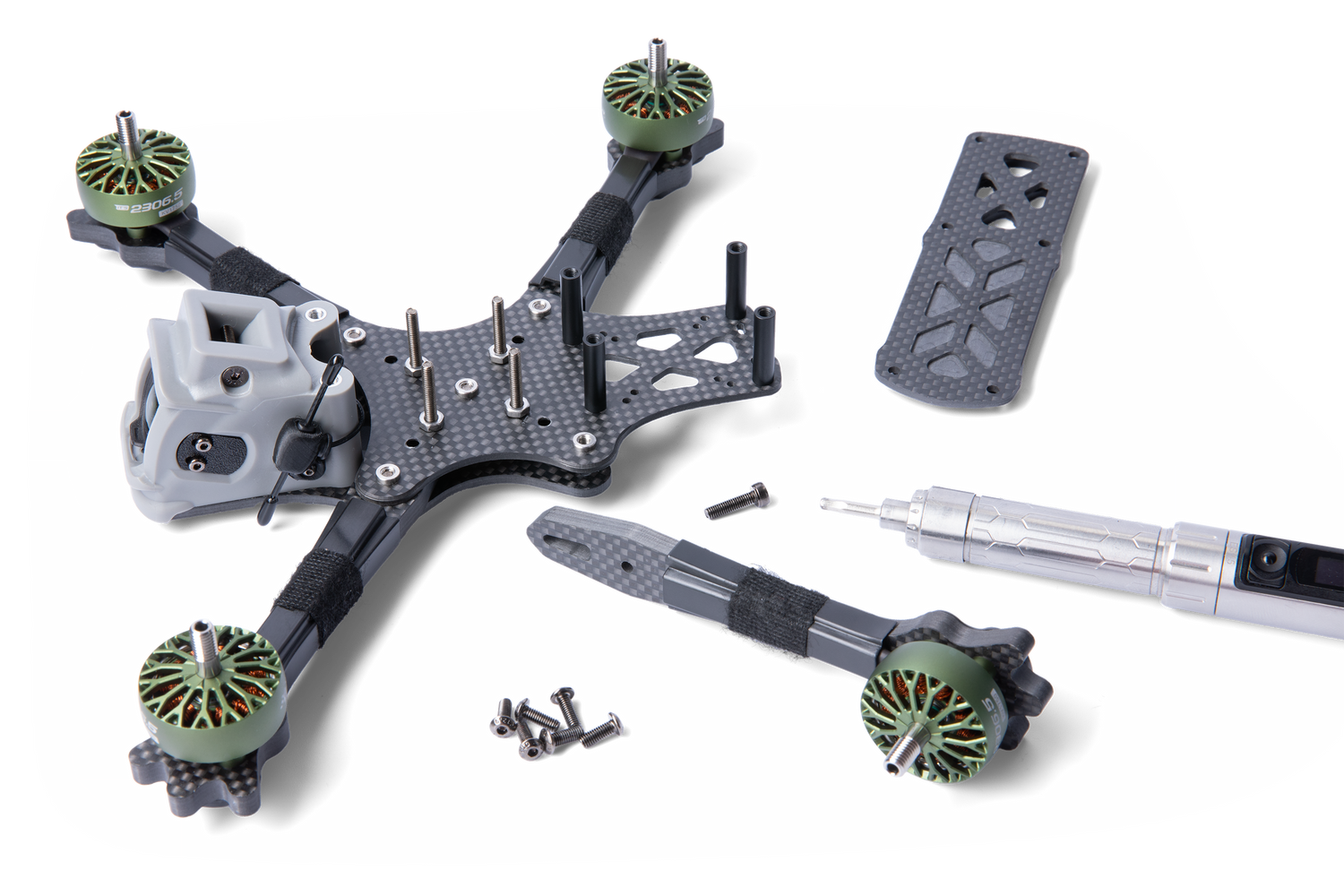

Assembly Guide

How to build ERA?

Check out down below.

PDF Download

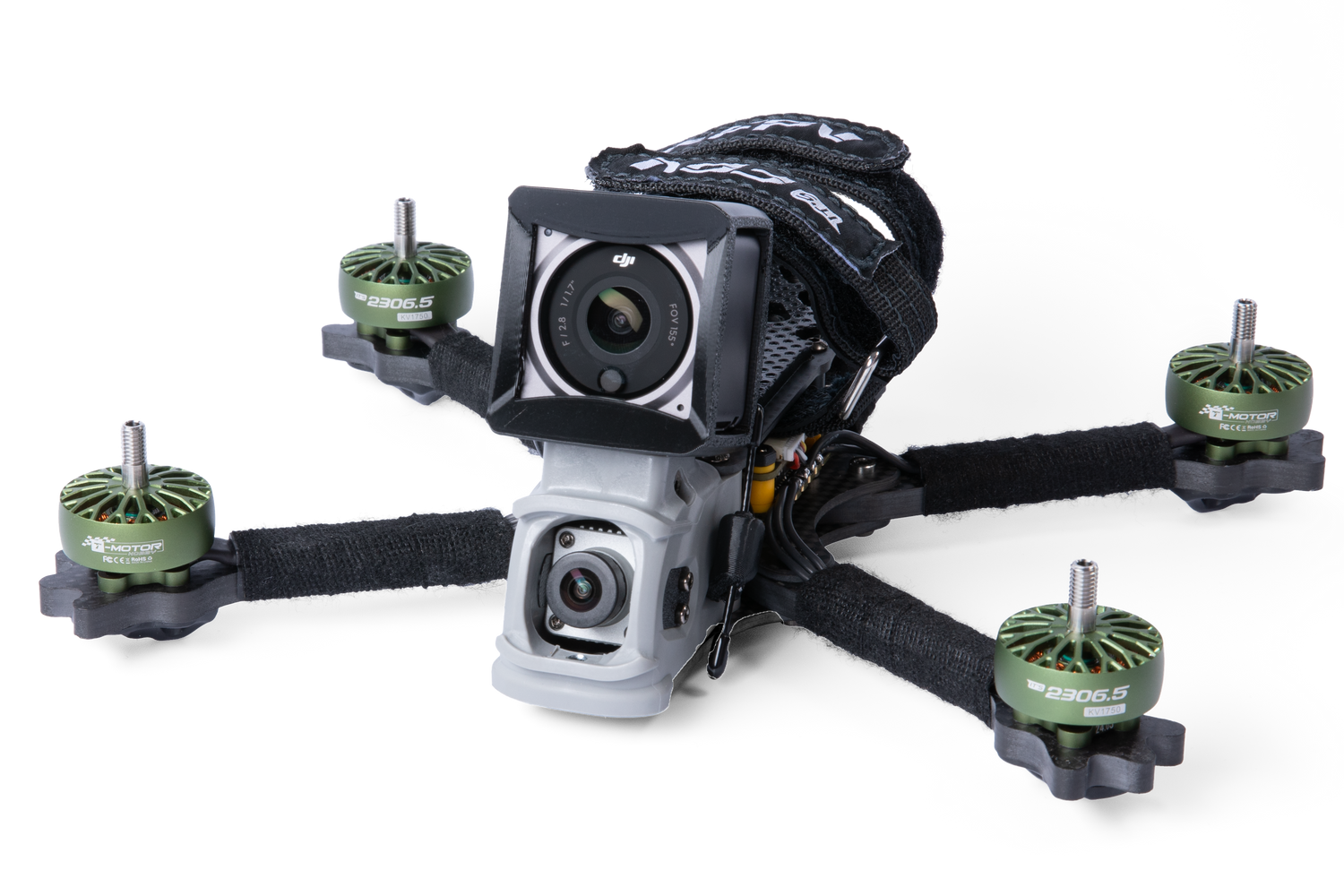

Build Suggestion

We created a page on rotorbuilds.com to showcase our recommended setups for freestyle.

Head over to see the latest setups including PID and Filter tune.

Get a perfect flying quad without any hassle.

ROTORBUILDS.COM

The Making of ERA

Our greatest challenge. One and a half years of development.

Hear our story

Build Tutorial
