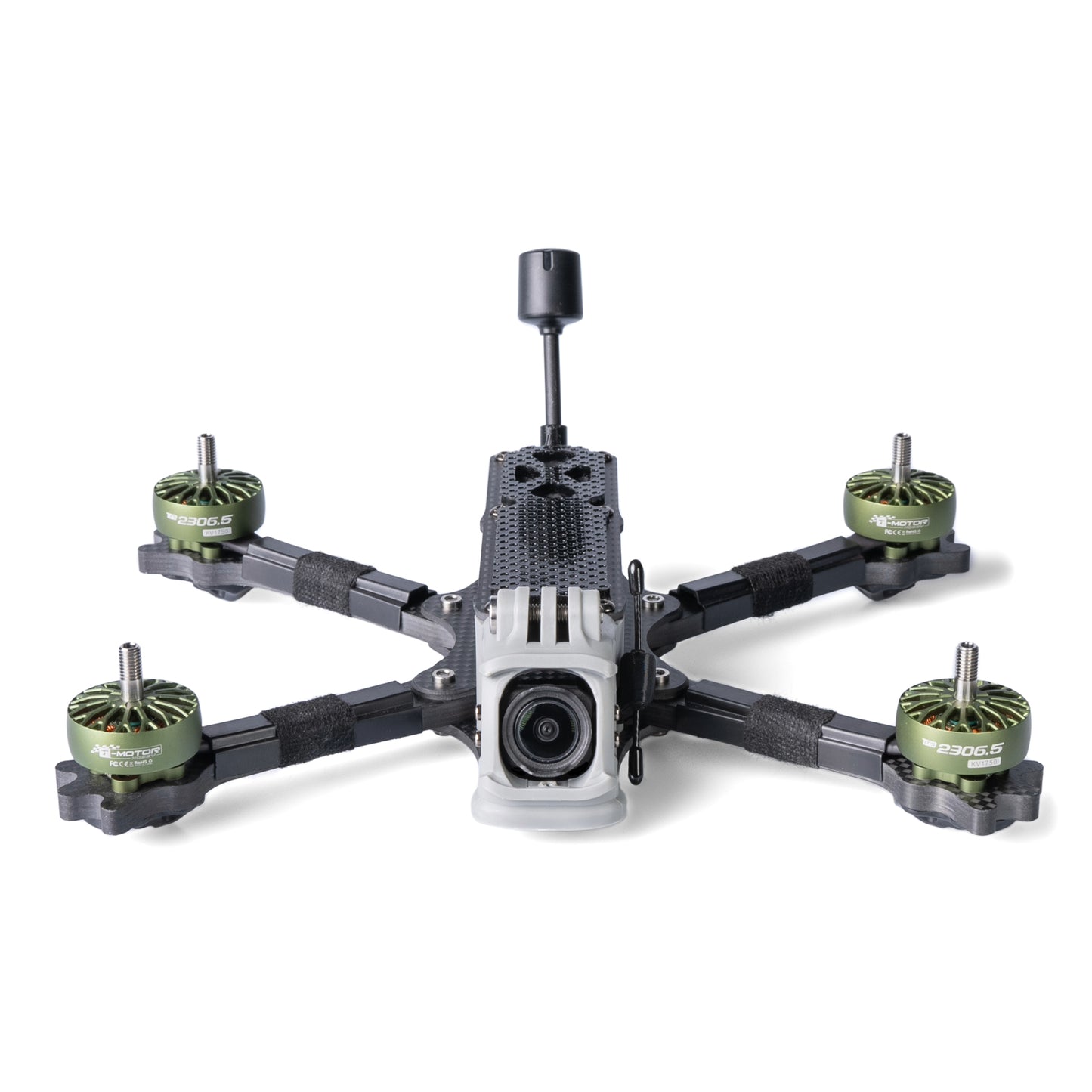

ERA 5″ Frame Kit
ERA 5″ Frame Kit
Couldn't load pickup availability
Batch 4 introduces a fresh look with a white camera cage and matching white skids, giving ERA a bold new aesthetic.
Discover the next revolution in FPV freestyle frames with the ERA. Combining unmatched flight performance and top-tier durability.

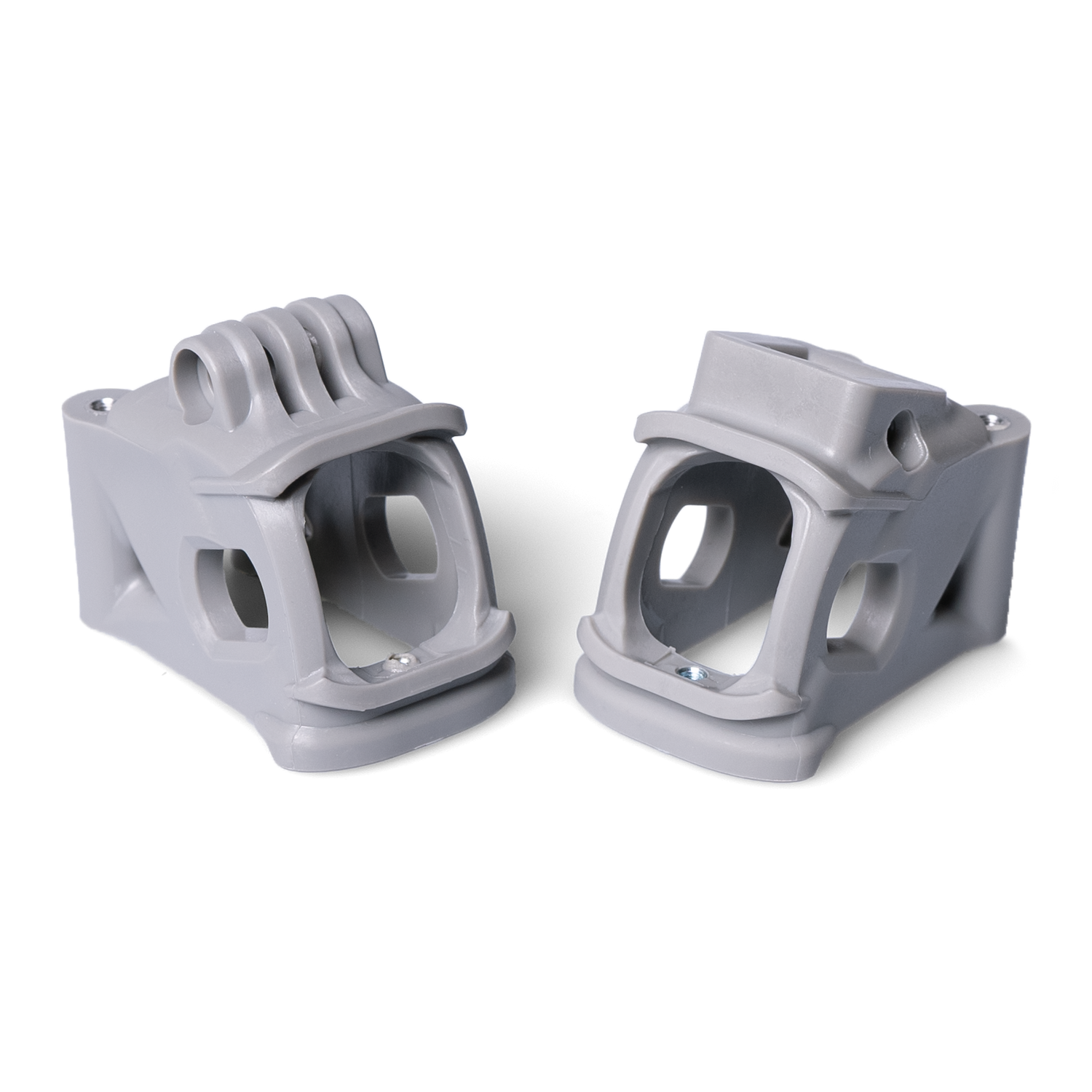

Introducing the toughest FPV camera cage ever. Crafted from a special nylon polymer blend, it absorbs impact energy to provide unparalleled protection for your FPV camera. This lightweight, durable cage outperforms traditional CNC aluminum designs, enhancing both robustness and flight performance.
With a quick swap function, you can install or remove your action camera with just one screw. The mount offers a fixed 20-degree angle, customizable with different mounts.
The compressed X frame design provides optimal stability and responsiveness for pitch and roll. Its split deck design saves weight without compromising durability.
A frame developed by pilots for pilots.
Note: ELRS Antenna Holder, Action Cam Mounts and Electronics are not included.
This cage doesn't fit the O4 Pro Air Unit Camera, please buy this frame kit.
Note to customers outside the EU: Price does not include tax.
Features
Features
Up to 55% stronger carbon fiber than typical FPV frames
|
|
Super durable nylon camera cage | |
Nylon-kevlar battery straps
|
|
Super sticky lipo pad | |
Injection molded wire protector | |
20 degree standard camera angle | |
Three point bell protection | |
One screw arm swap | |
One screw action camera swap |
Specifications
Specifications
7075 Aluminium standoffs | |
Compressed X frame geometry | |
12.9 hardened steel hardware | |
Fits up to 5.2" propellers | |
Wheelbase 225mm | |
Stack mounting 30.5x30.5mm, 20x20mm | |
Motor mounting 16x16mm | |
Camera mounting up to 20x20mm | |
VTX mounting 20x20mm, 25.5x25.5mm |
Scope of delivery
Scope of delivery
Injection molded hardware
1x Nylon Camera Cage
4x Skids
4x Wire Protector
Carbon fiber frame parts
1x Bottom Plate Front CF 2,5mm
1x Bottom Plate Back CF 2mm
4x Arm CF 6mm
1x Top Plate
1x Interlock
Hardware
4x 20mm Standoffs 7075
15x 8mm M3 Buttonhead 12.9
16x 10mm M3 Buttonhead 12.9
5x 12mm M3 Caphead 12.9
4x 20mm Countersunk V2A
1x 22mm M3 Countersunk
5x M3 Pressnut
4x 18mm M2 Caphead 12.9
4x 7mm M2 Caphead 12.9
4x 6mm M2 Caphead 12.9
4x 4mm M2 Caphead 12.9
4x Lock nut M2
4x 9mm M1.6 Caphead 12.9
3D Print Hardware
6x TPU Camera Inserts (fits O3, Walksnail Nebula Pro and Vista, Runcam Wasp)
1x AWG14 Lead Holder
1x VTX Antenna Holder
Miscellaneous
1x Super Sticky Lipo Pad
2x Nylon-kevlar Battery Straps (length 250mm)





















Action Camera Mounts
Available seperately for the nylon camera cage.
Available in 10-30° angles.
- GoPro 9,10,11,12
- GoPro 11 Mini
- DJI Action 2
If you have a 3D printer, you can download the mounts from the 3D Printed Hardware page for free.

Acessories
Need some extra chooch?
3D printed acessories available seperately for the ERA frame, downloadable for free.


Build Suggestion
We created a page on rotorbuilds.com to showcase our recommended setups for freestyle.
Head over to see the latest setups including PID and Filter tune.
Get a perfect flying quad without any hassle.
