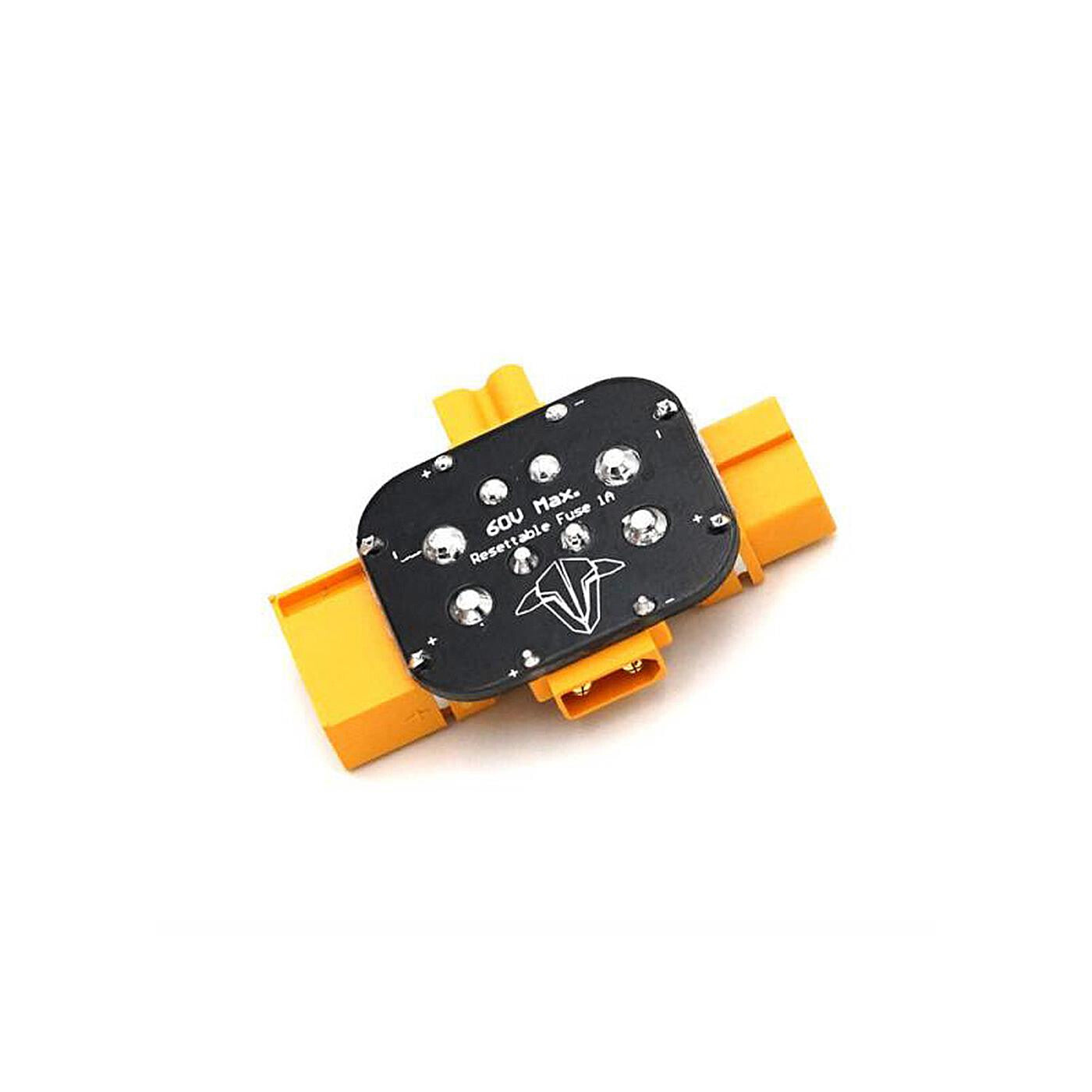

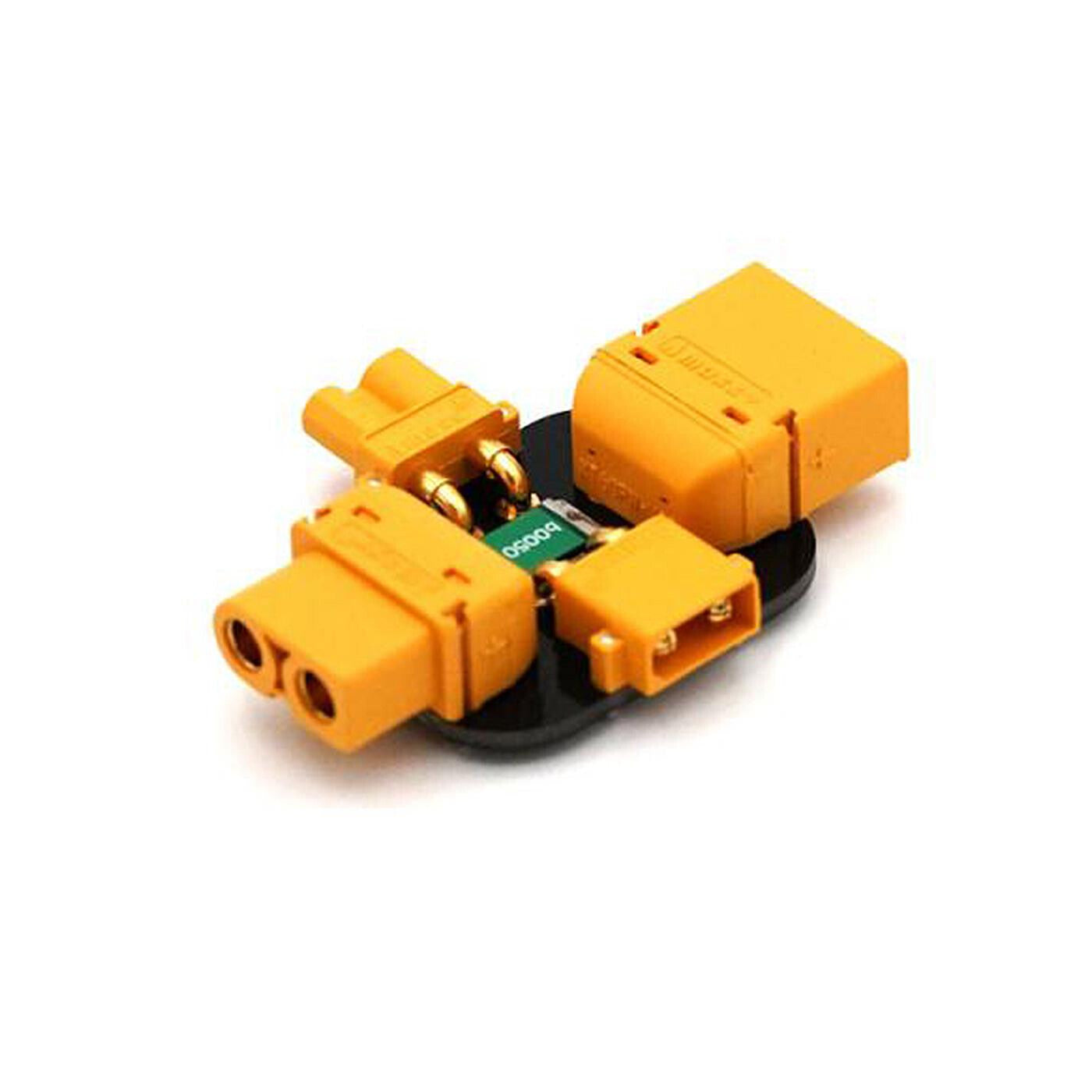

TBS Smoke Stopper

Instant Circuit Protection for New Builds

The TBS Smoke Stopper prevents catastrophic component failure by instantly cutting power during short circuits, making first power-ups safe.

Features

• Self-healing fuse trips immediately upon detecting a short to save ESCs and Flight Controllers from burning out.
• Automatically resets after the fault is cleared, eliminating the need to replace blown fuses or bulbs.
• Reacts significantly faster than traditional automotive lightbulb limiters to protect sensitive digital electronics.
• Low trip-current threshold ensures protection activates before traces on the PCB can melt.
• Dual connector support (XT30 and XT60) covers everything from micro whoops to 6S freestyle rigs.
• LED indicator provides immediate visual feedback on the circuit status (Green = Good, Red = Fault).

Compatibility

• XT30 and XT60 Connectors
• Input Voltage: 2S to 6S LiPo

Use Cases

• The dreaded "smoke test" after building a new quad
• Troubleshooting unknown electrical faults on crashed drones
• Safely testing repairs without risking the battery or components

Specs

• Connector Input: XT30 & XT60 (Male)
• Connector Output: XT30 & XT60 (Female)
• Trip Current: approx. 1.1A (Hold) / 2.2A (Trip)
• Trip Time: 0.5ms
• Input Voltage: 7-26V (2S-6S)

Includes

• 1x TBS Smoke Stopper
