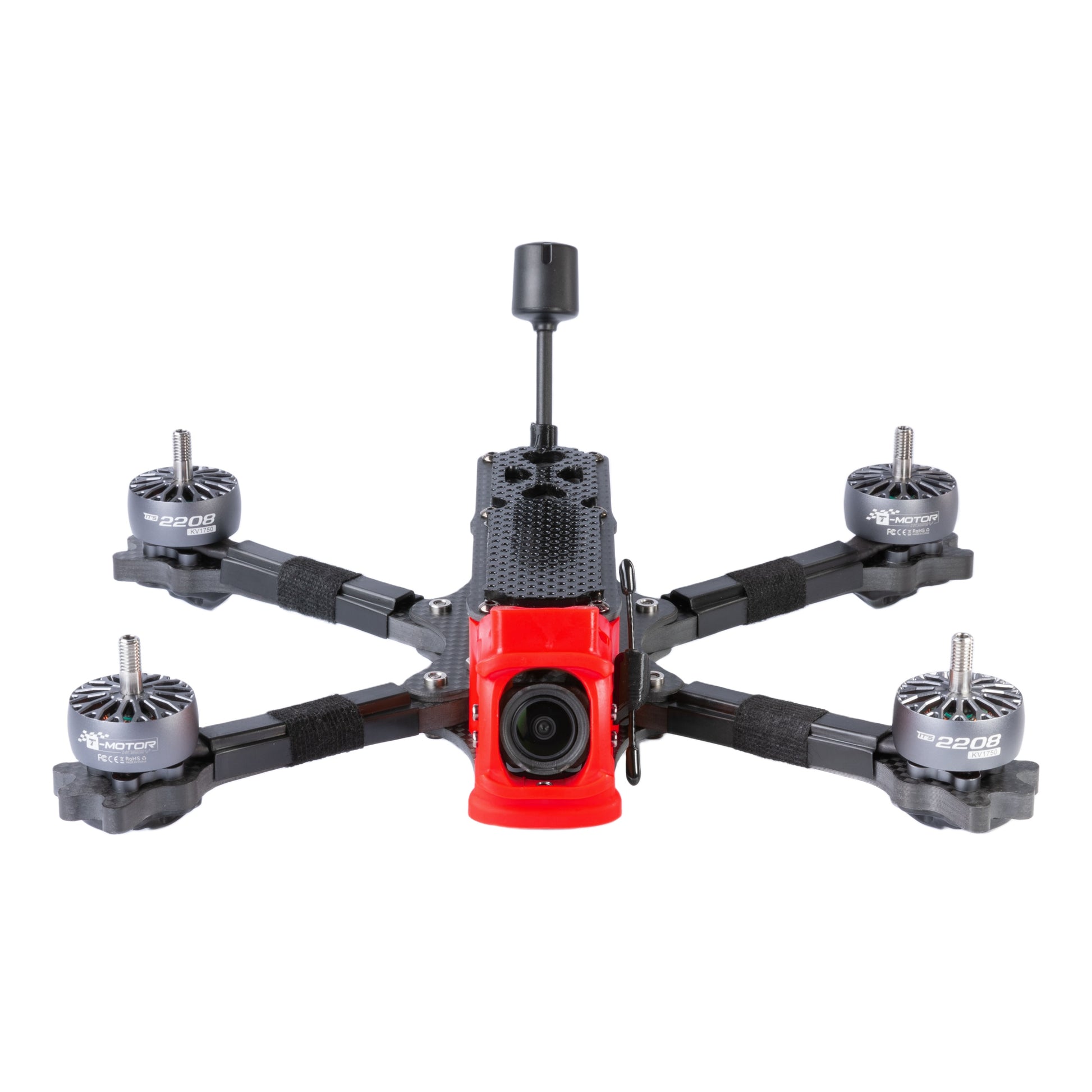

ERA 5″ Frame Kit
ERA 5″ Frame Kit
Couldn't load pickup availability
Impact Absorbing Nylon Cage for Ultimate Freestyle Durability
Discover the next revolution in FPV freestyle frames with the ERA. Combining unmatched flight performance and top-tier durability.
Introducing the toughest FPV camera cage ever. Crafted from a special nylon polymer blend, it absorbs impact energy to provide unparalleled protection for your FPV camera. This lightweight, durable cage outperforms traditional CNC aluminum designs, enhancing both robustness and flight performance.
The compressed X frame design provides optimal stability and responsiveness for pitch and roll. Its split deck design saves weight without compromising durability.
A frame developed by pilots for pilots.
Important notes:
- ELRS Antenna Holder, Action Cam Mounts, and Electronics are not included.
- This cage doesn't fit the O4 Pro Air Unit Camera, please buy this frame kit.
- Disclaimer for Caddx Moonlight Users: Moonlight VTX does fit in this frame, but it's a very tight squeeze. ND filters can be used, however the camera angle will be effectively locked at around 20°. If you're flying Moonlight, just be aware: this frame is not the ideal match. It works, but not perfectly.
- Note to customers outside the EU: Prices do not include taxes.
Features
Features
 |
Up to 55% stronger carbon fiber than typical FPV frames
|
 |
Super durable nylon camera cage |
 |
Nylon-kevlar battery straps
|
 |
Super sticky lipo pad |
 |
Injection molded wire protector |
 |
20 degree standard camera angle |
 |
Three point bell protection |
 |
One screw arm swap |
 |
One screw action camera swap |
Specifications
Specifications
 |
7075 Aluminium standoffs |
 |
Compressed X frame geometry |
 |
12.9 hardened steel hardware |
 |
Fits up to 5.2" propellers |
 |
Wheelbase 225mm |
 |
Stack mounting 30.5x30.5mm, 20x20mm |
 |
Motor mounting 16x16mm |
 |
Camera mounting up to 20x20mm |
 |
VTX mounting 20x20mm, 25.5x25.5mm |
Scope of delivery
Scope of delivery
Injection molded hardware
1x Nylon Camera Cage
4x Skids
4x Wire Protector
Carbon fiber frame parts
1x Bottom Plate Front CF 2,5mm T800
1x Bottom Plate Back CF 2mm T800
4x Arm CF 6mm T700
1x Top Plate 2mm CF T700
1x Interlock V2 CF T700
Hardware
4x 20mm Standoffs 7075
15x 8mm M3 Buttonhead 12.9
16x 10mm M3 Buttonhead 12.9
5x 12mm M3 Caphead 12.9
4x 20mm Countersunk V2A
1x 22mm M3 Countersunk
5x M3 Pressnut
4x 18mm M2 Caphead 12.9
4x 7mm M2 Caphead 12.9
4x 6mm M2 Caphead 12.9
4x 4mm M2 Caphead 12.9
4x Lock nut M2
4x 9mm M1.6 Caphead 12.9
3D Print Hardware
6x TPU Camera Inserts (fits O3, Walksnail Nebula Pro and Vista, Runcam Wasp)
1x AWG14 Lead Holder
1x VTX Antenna Holder
Miscellaneous
1x Super Sticky Lipo Pad
2x Nylon-kevlar Battery Straps (length 250mm)
What Camera Cage Should You Use?
Cinematic pilots will benefit from the GoPro-style camera cage, offering smooth, step-free angle adjustments without a TPU guard. Its specially made titanium M5 bolt allows quick, tool-free changes with a 2.5mm hex key.
Freestyle pilots should opt for the fixed-angle camera cage, which stays secure during crashes. While less versatile, its fixed 20-degree angle ensures consistent control.
Both cages, made from durable nylon polymer, provide excellent camera protection and fit cameras up to 20x20mm.
Action Camera Mounts
Available seperately for the nylon camera cage.
Available in 10-30° angles.
- GoPro 9,10,11,12,13
- GoPro 11 Mini
- DJI Action 2
- DJI Action 5 Pro
- DJI Osmo Nano
If you have a 3D printer, you can download the mounts from the 3D Printed Hardware page for free.
Acessories
Need some extra chooch?
3D printed acessories available seperately for the ERA frame, downloadable for free.
