Foxeer Lollipop 4 Plus 5.8G Antenna (2 PACK)

Foxeer Lollipop 4 Plus 5.8G Antenna

2.6dBi omni antenna with 98% radiation efficiency and an SWR of 1.07 at center frequency. The LDS construction in a durable PC+ABS case delivers reliable signal across the full 5.5-6GHz band.

Available in RHCP and LHCP. Multiple connector options to fit any setup.

Specs

• Center Frequency: 5.75GHz
• Bandwidth: 5.5-6GHz
• Gain: 2.6dBi
• Radiation Efficiency: 98%
• SWR: 1.07 at center frequency
• Axial Ratio: Close to 1
• Polarization: RHCP / LHCP
• Case Material: PC+ABS

Weight by Connector

• SMA / RPSMA: 7.8g
• Straight MMCX: 4.4g
• Angle MMCX: 4.5g
• Angle MMCX Tube Short: 4.8g
• Angle MMCX Tube Long: 6.8g
• SMA 10cm: 9.7g
• Angle SMA 15cm: 13.9g
• UFL: 2.8g
• UFL Tube Short: 2.9g
• UFL Tube Long: 3.8g

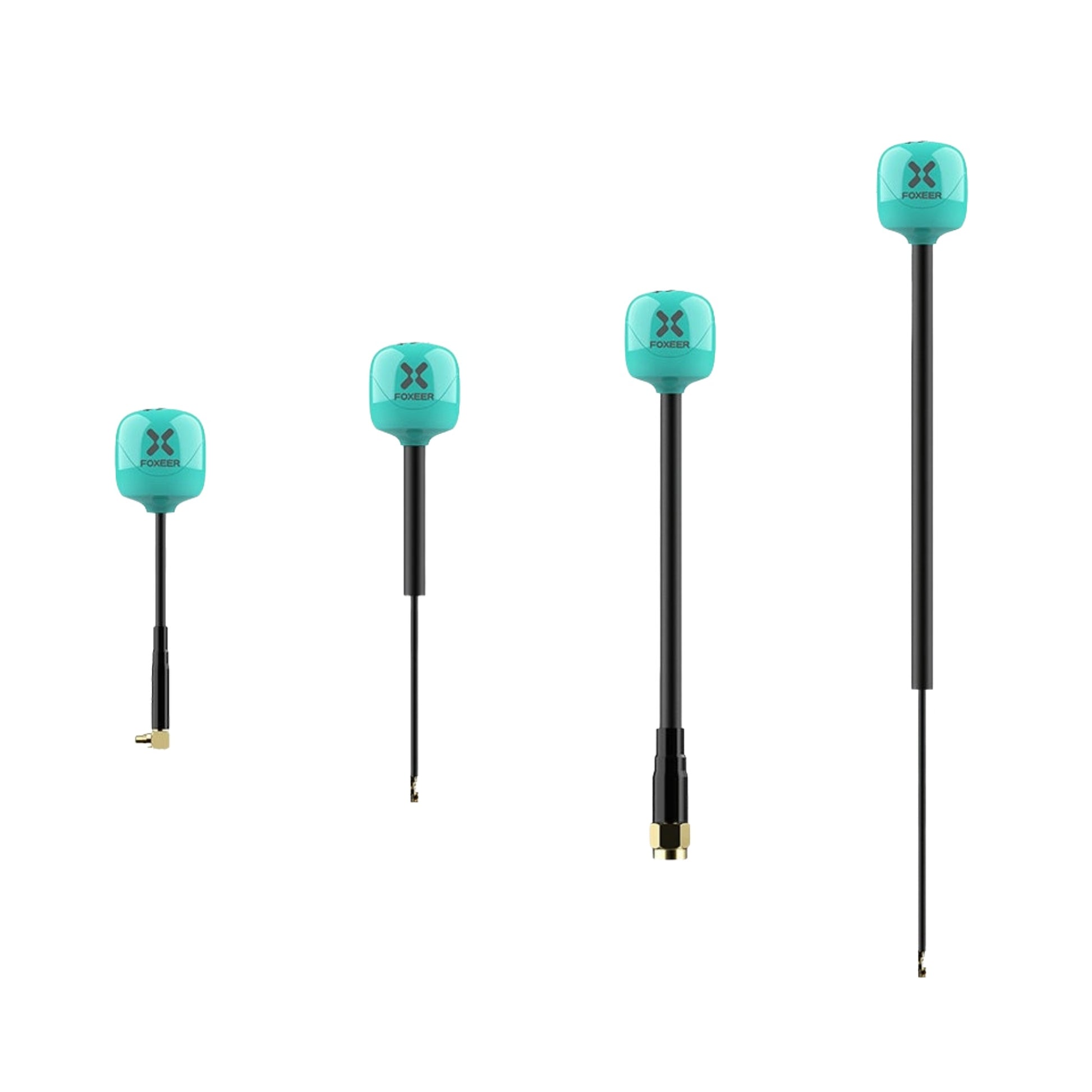

Size by Connector

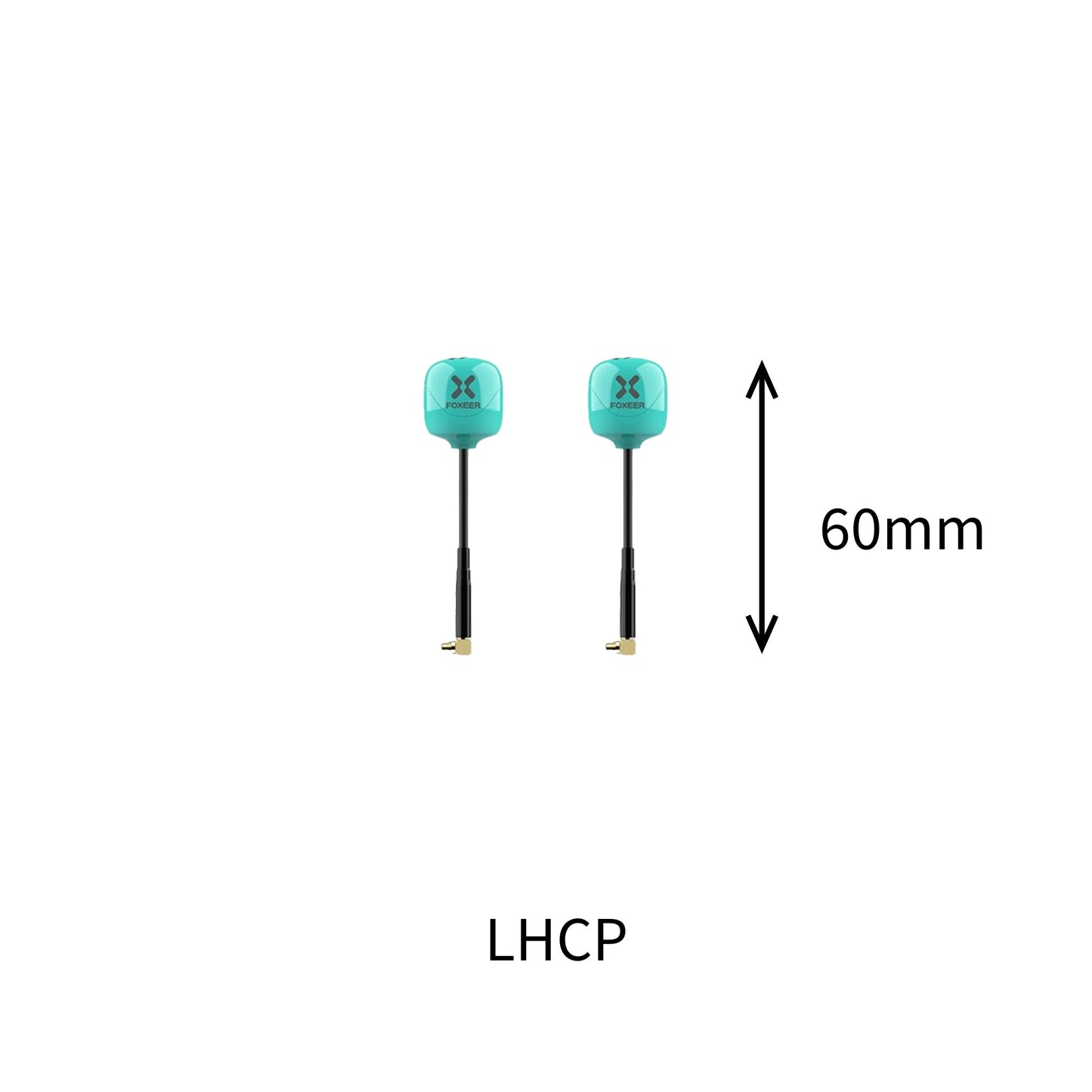

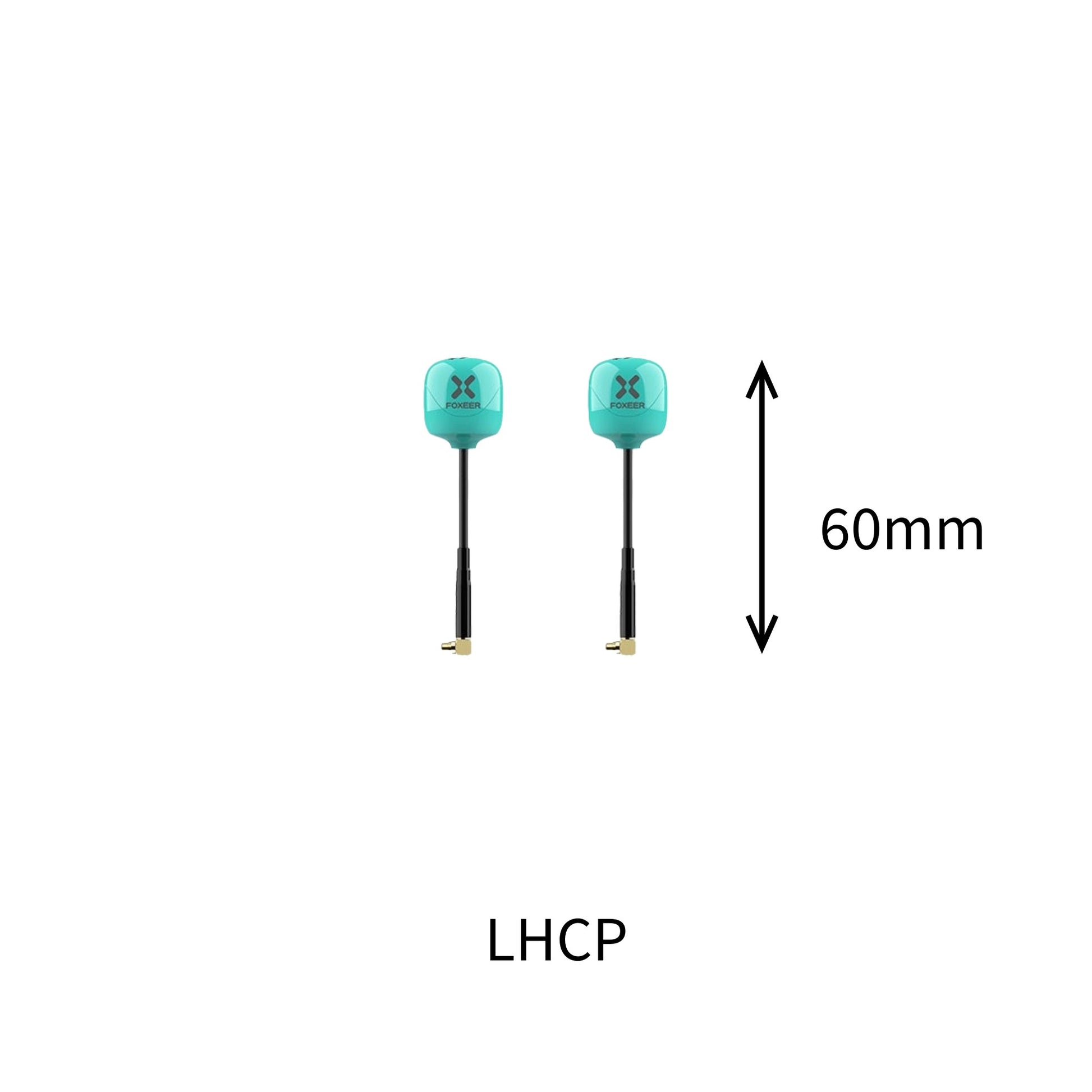

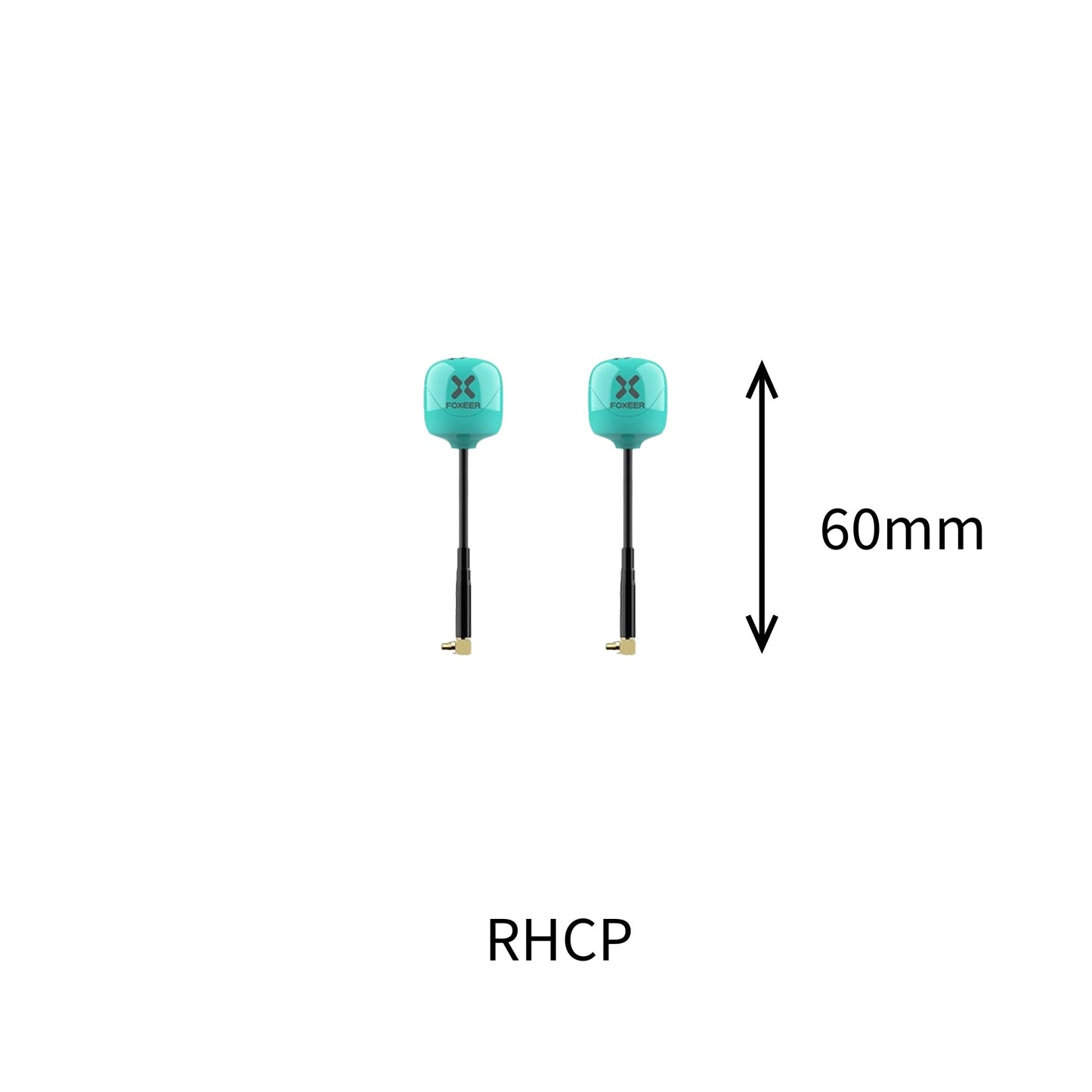

• SMA / RPSMA / Straight MMCX / Angle MMCX: Φ11x60mm
• UFL: Φ11x85mm

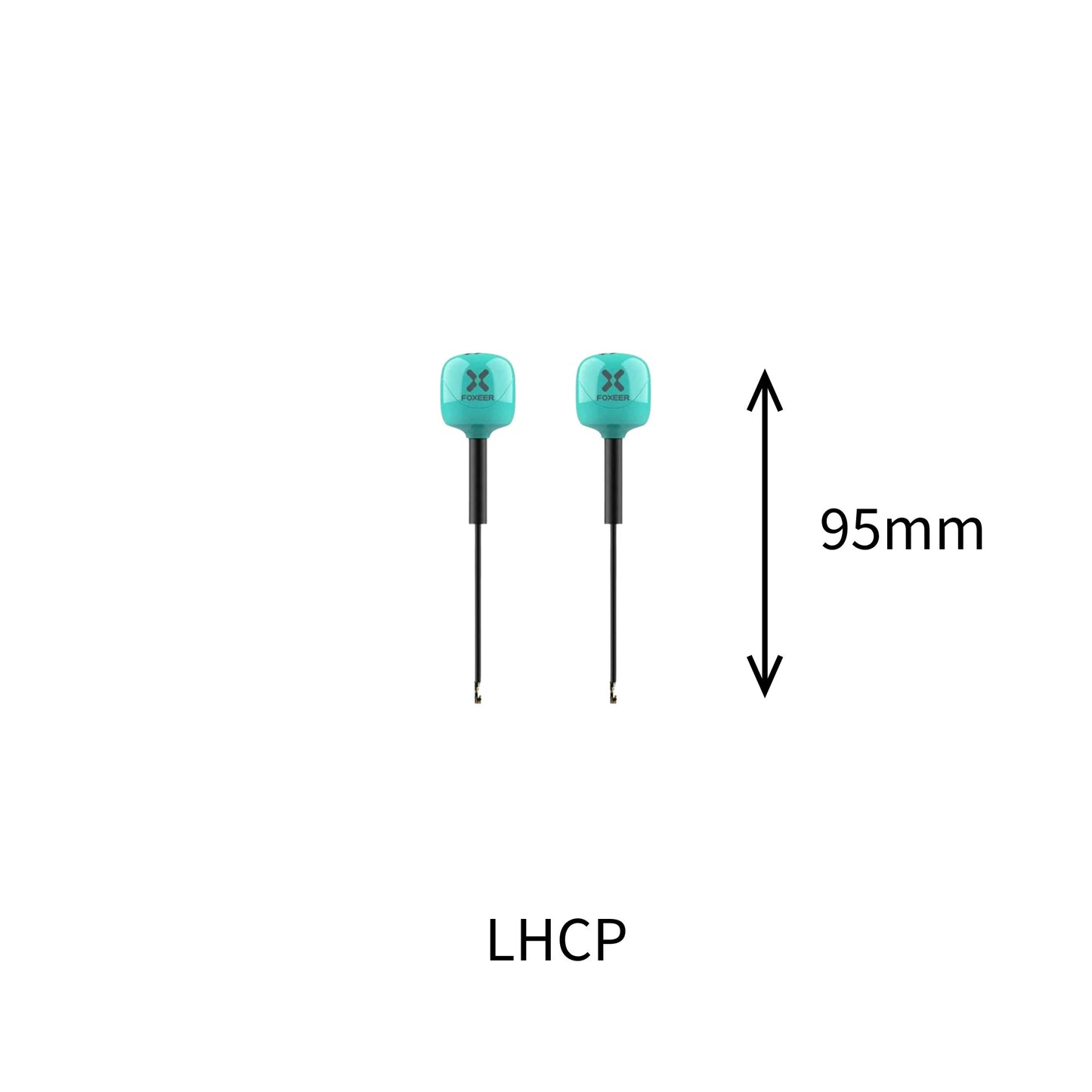

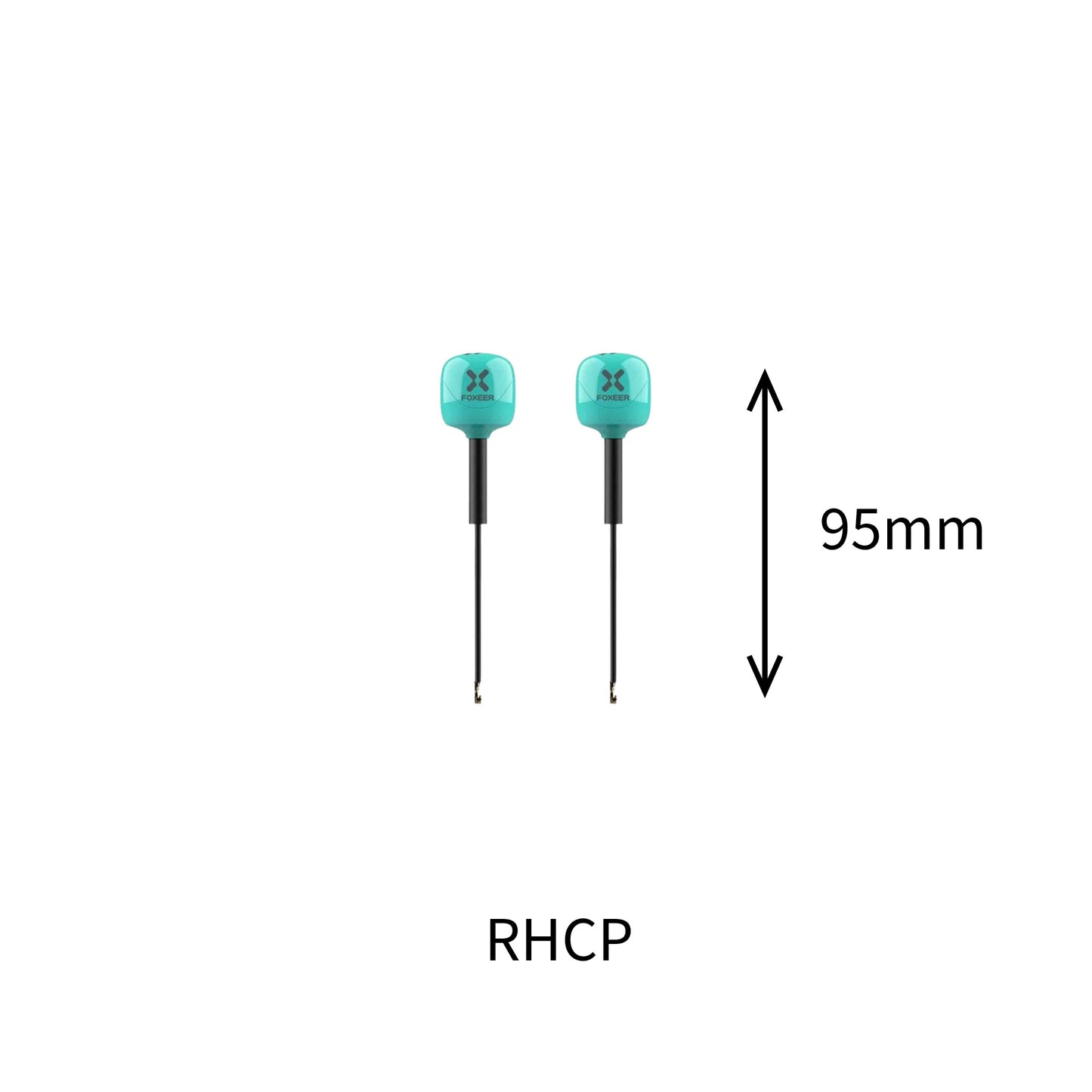

• UFL Tube Short / Angle MMCX Tube Short: Φ11x95mm

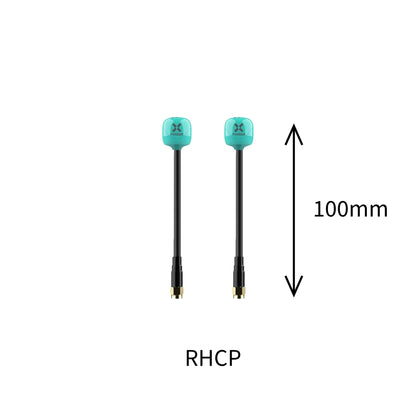

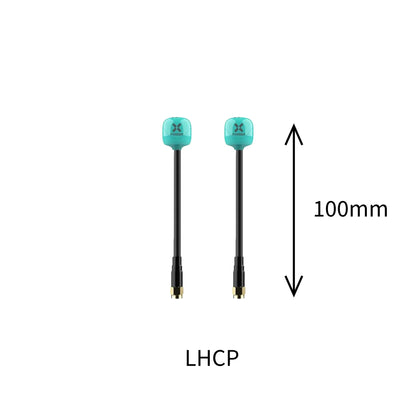

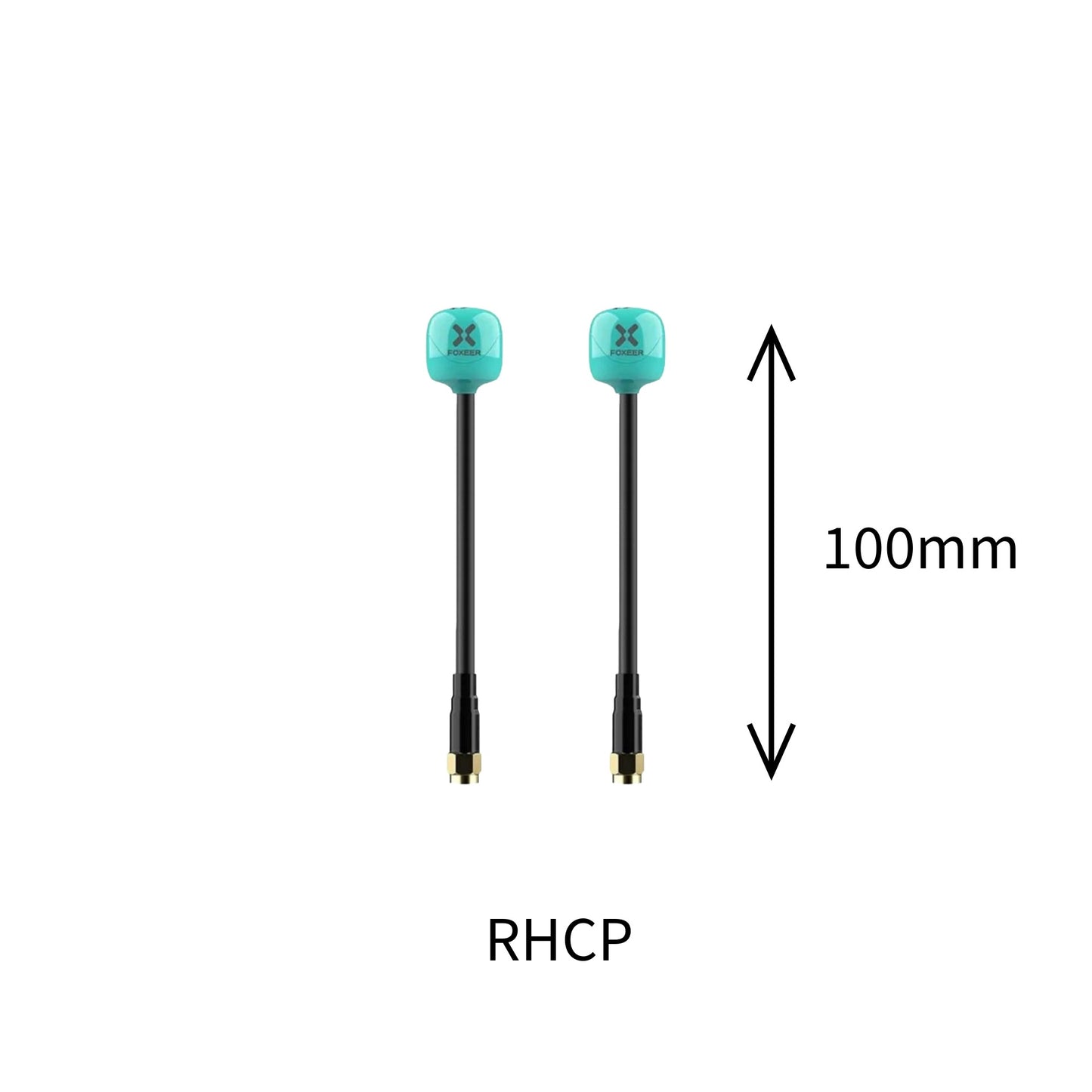

• SMA 10cm: Φ11x100mm
• Angle SMA 15cm: Φ11x150mm

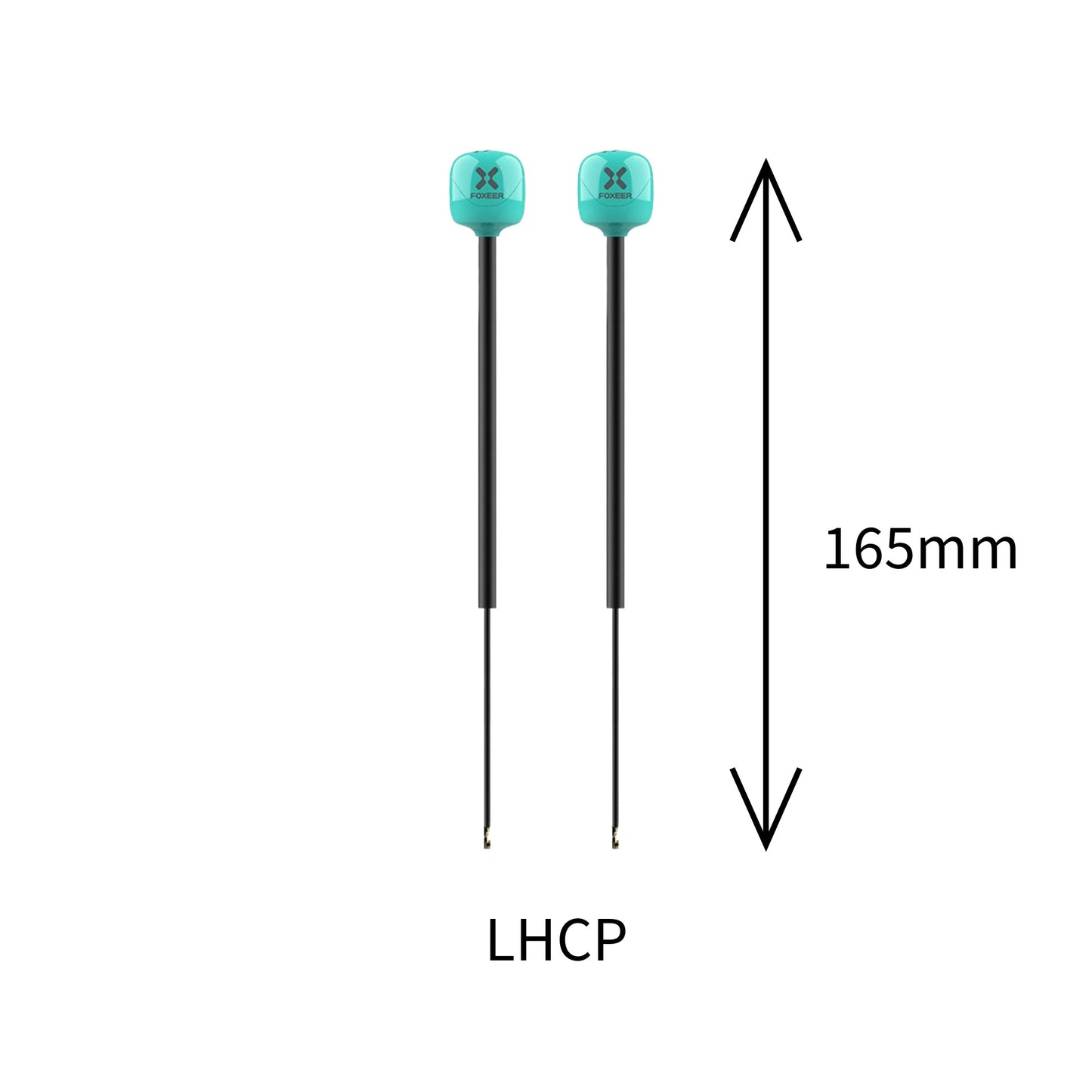

• UFL Tube Long / Angle MMCX Tube Long: Φ11x165mm

Includes

1x Foxeer Lollipop 4 Plus 5.8G 2.6dBi FPV Omni LDS Antenna (2 PACK)
